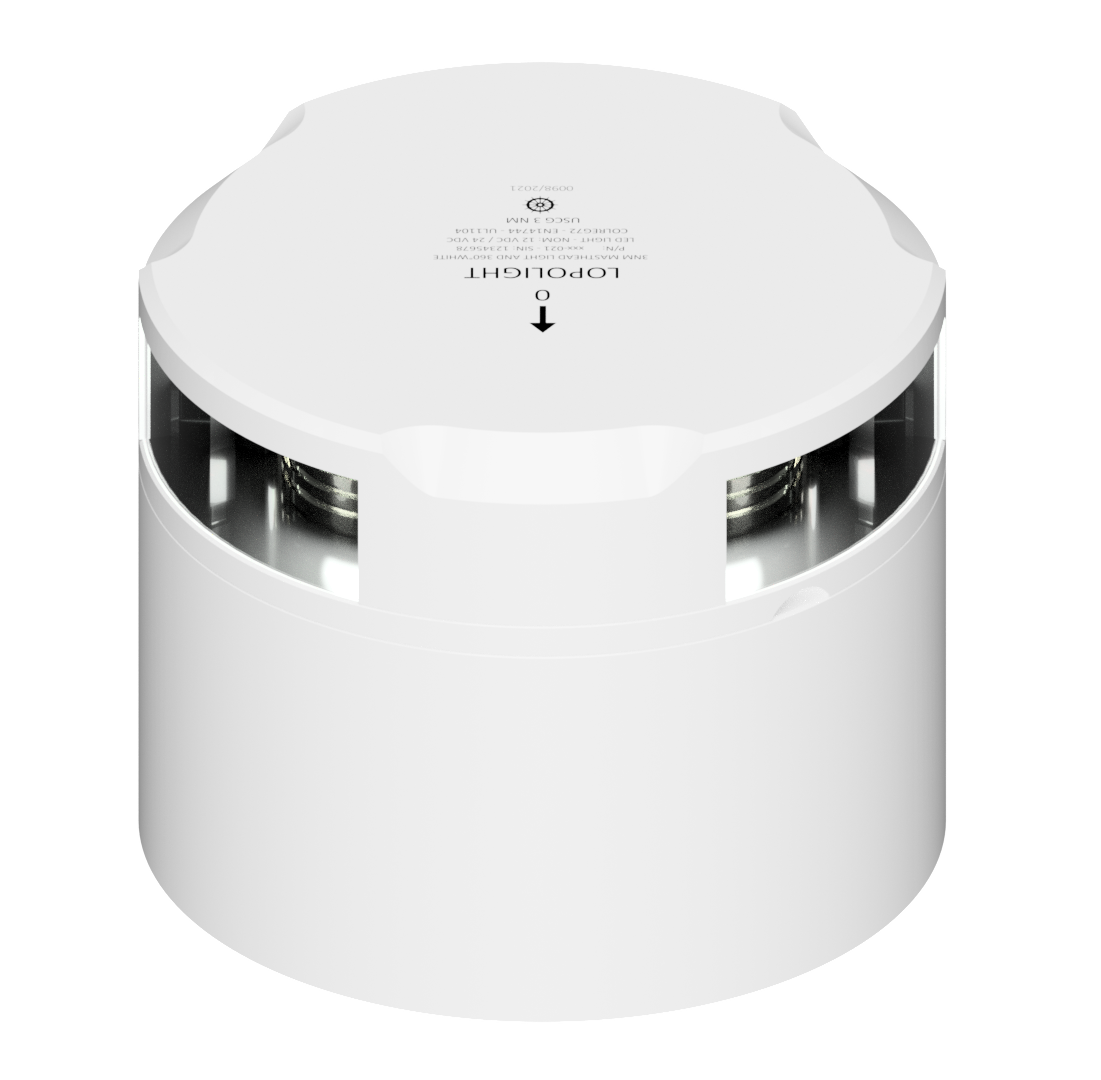

3nm Masthead/360° White, white ceramic coated
P/N: 201-021-WH
3nm Masthead/360° White, white ceramic coated - Powerboat
This light is specific for Power Boats White ceramic finish Aluminium mount base, white Cable down only Included standard: Black PE baseplate Option: white ceramic coated baseplate
Number
201-021-WH
Light Color
White
Dimensions metric
Ø92,5mm x 46mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Dimensions imperial
Ø3.6" x 1.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438040250
IP rating
IP68
Power draw (W)
3,6
UPC Code
879343040383
Connection
0.7m cable
Current consumption (mA @ 12VDC)
300
Current consumption (mA @ 24VDC)
148
Vessel size
12-20M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
