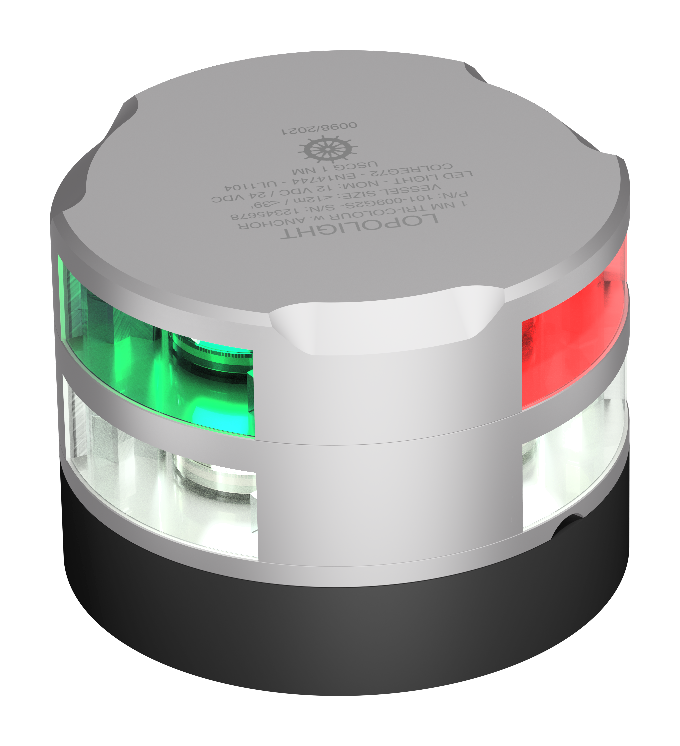

Tri-color/anchor, silver anodized
P/N: 101-009G2

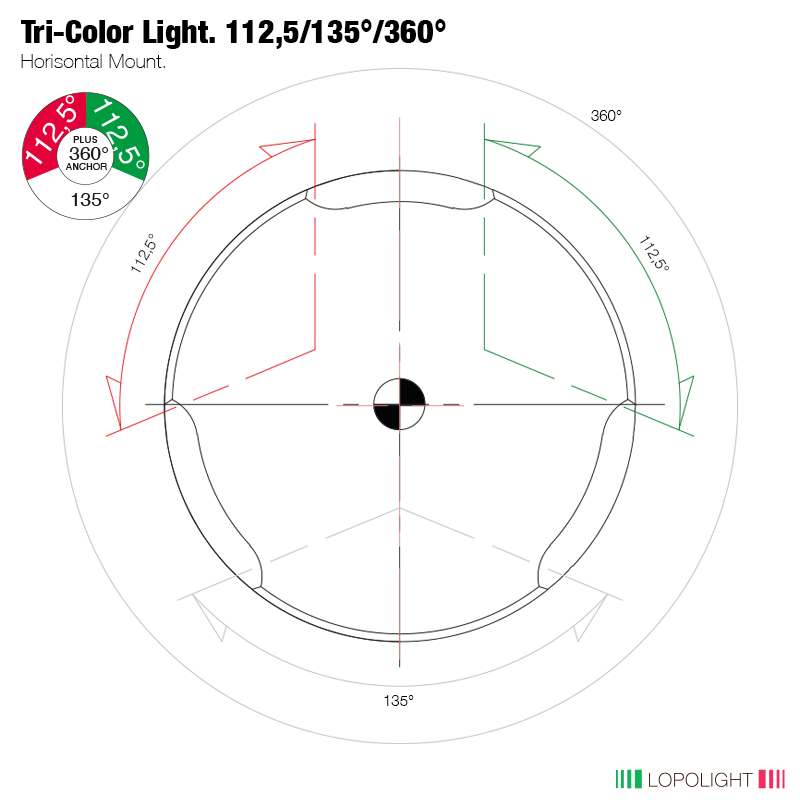

1nm tri-color/anchor, silver anodized
Horizontally mounted with 0,75m cable
Number
101-009G2
Light Color
Red,Green,White
Dimensions metric
Ø92,5mm x 68mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>5.4cd
Dimensions imperial
Ø3.6" x 2.6"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Operating Voltage
10-32VDC
EAN
5704438024359
IP rating
IP68
Power draw (W)
2.6
UPC Code
879343024482
Connection
0.7m cable
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
81
Vessel size
Under 12M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.8 Kg
Weight (Oz)
28.22 Oz
