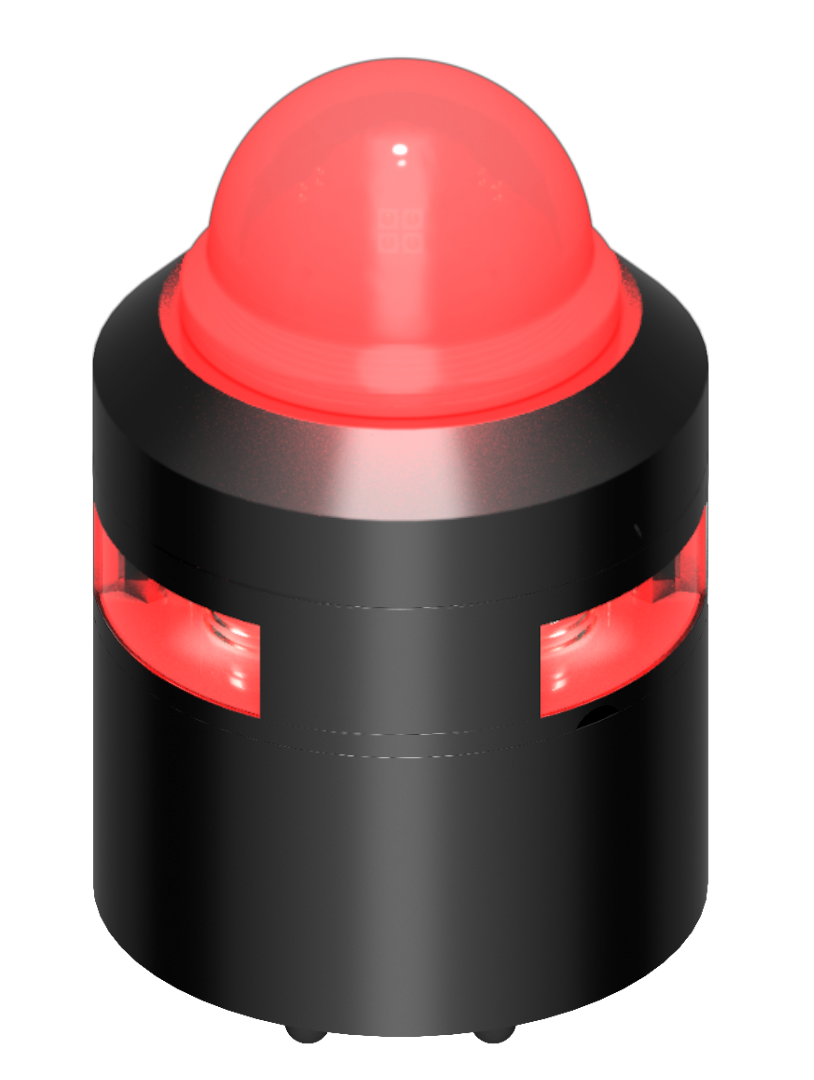

Red Obstruction + 360° Red, black
P/N: 301-411+201-014-B
Red Obstruction + 360° Red, black
Hemispherical Red Obstruction light 15cd/3nm 2nm Red 360° (for NUC / upper sailing light) On aluminium base 400-034 (CS/CD) M20 and M16 cable glands... For 4.5 (5/32") to 13mm (1/2") cables
Number
301-411+201-014-B
Dimensions metric
Ø92,5mm x 138,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 5.4"
Approved to
IEC 60945
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438047402
IP rating
IP68
Power draw (W)
2,7
UPC Code
879343047535
Connection
Plug connector
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
111
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
