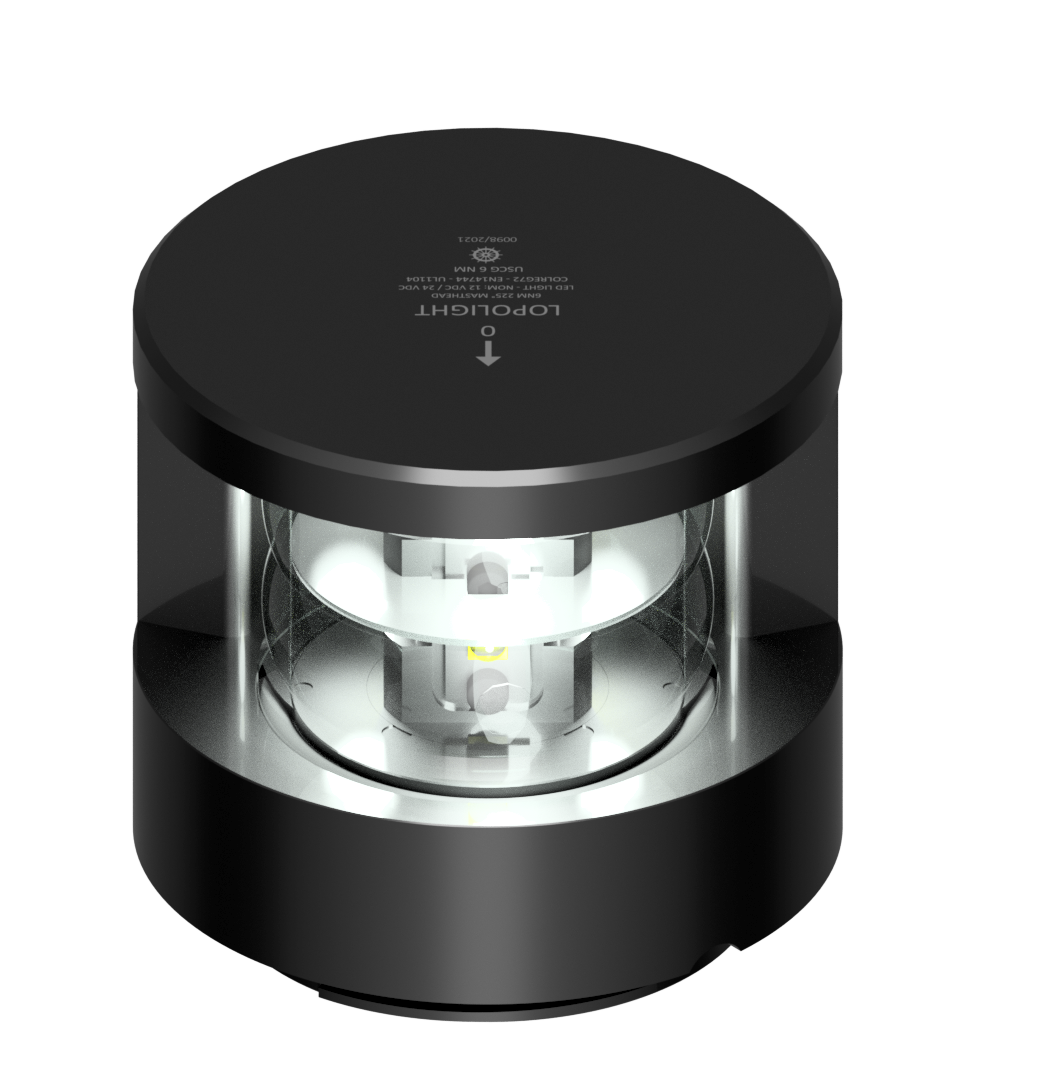

6nm 225° White, Dbl, hor, black, ice - LIGHT ONLY
P/N: 300-138-B-RPM-I-L4L
6nm Masthea, dbl, hor, black, ice - LIGHT ONLY
Dimmable / Monitored / controllable 3-lead connection for power and control Ice-class heaters built-in 24VDC FOR SPARE PARTS / LIGHTS 4 LIFE
Number
300-138-B-RPM-I-L4L
Light Color
White
Dimensions metric
Ø92,5mm x 128mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>94cd
Dimensions imperial
Ø3.6" x 5"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
6nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438041776
IP rating
IP68
Power draw (W)
3
UPC Code
879343041908
Connection
Plug connector
Current consumption (mA @ 12VDC)
23
Special Attributes
Ice-class Defroster included,Dimmable (NAVY/SAR only)
Current consumption (mA @ 24VDC)
350
Vessel size
Over 50M
Min. feed wire gauge
1.5mm2 AWG18
Weight (Kg)
2 Kg
Weight (Oz)
70.54 Oz
