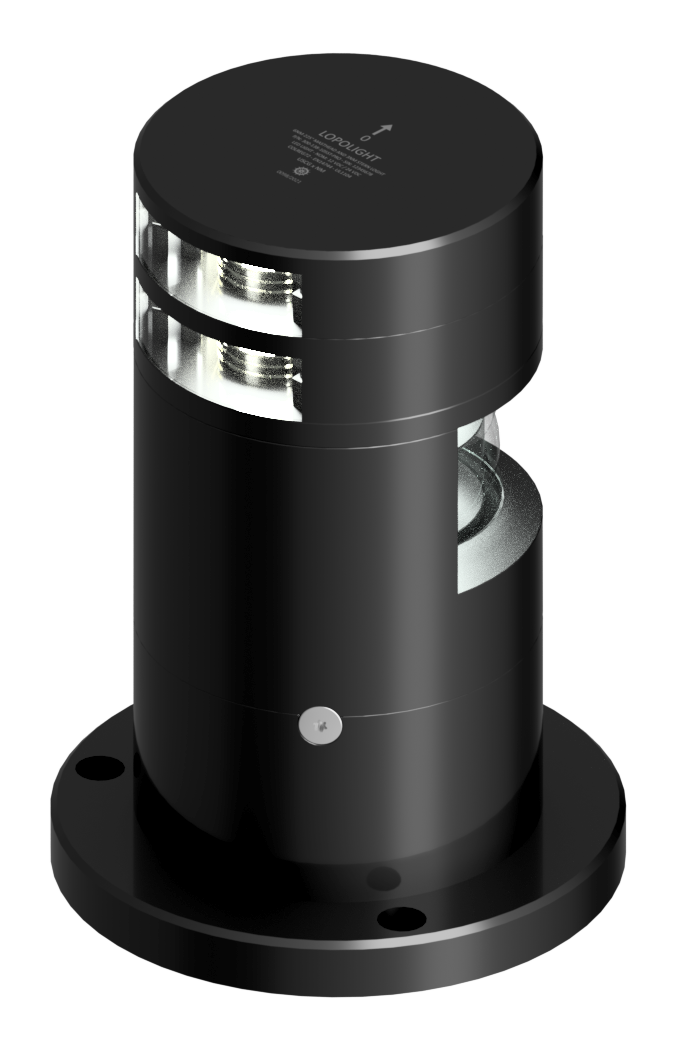

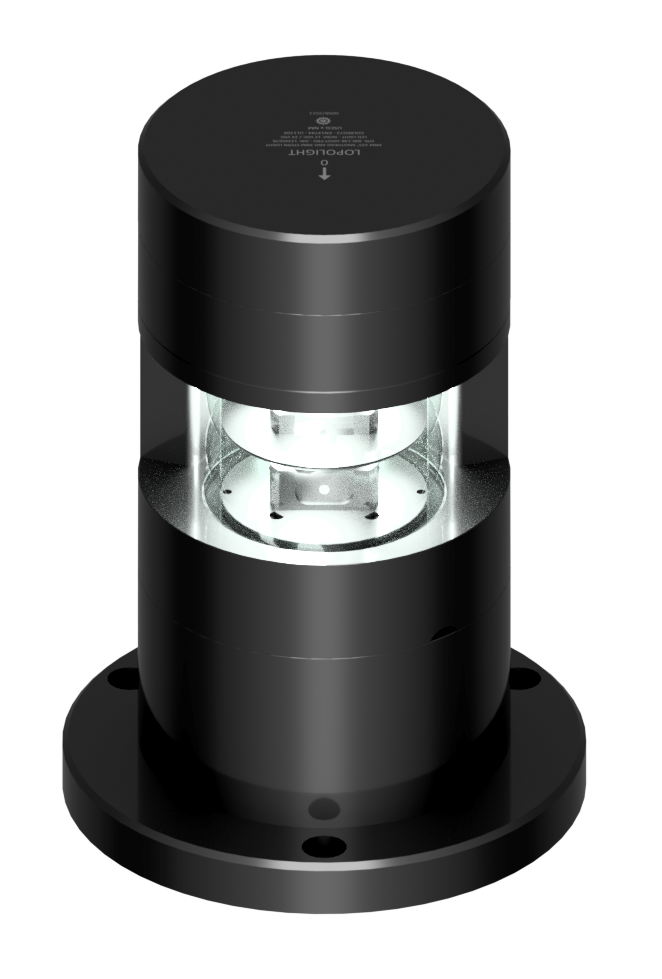

6nm 225° White & 3nm 135° White (Great Lakes)
P/N: 300-138+105ST-PRO

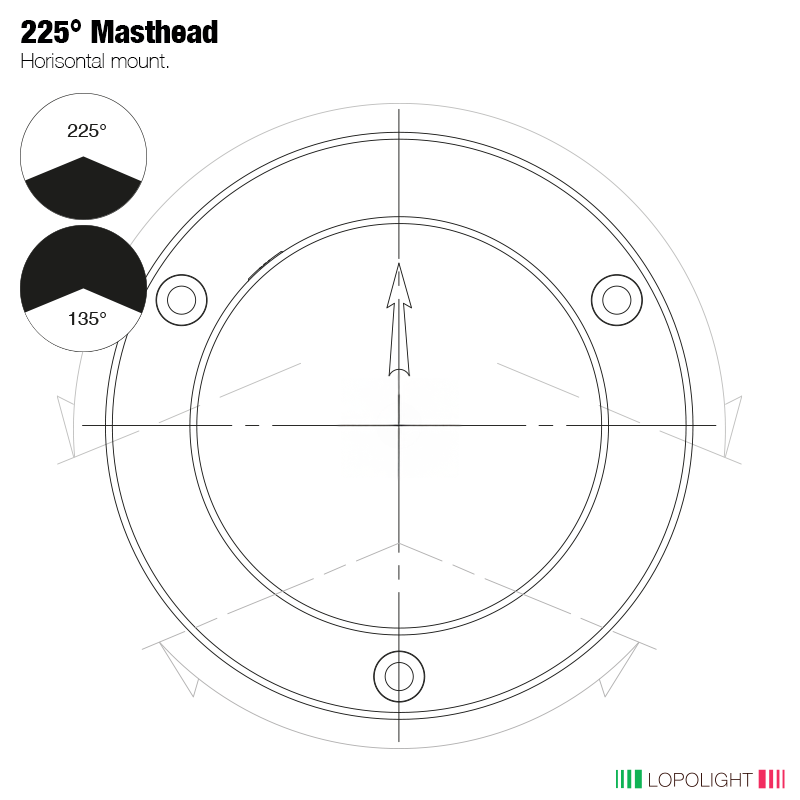

6nm Masthead & 3nm stern light (Great Lakes)
Combination light ONLY for use on US Great Lakes Horizontally mounted on 400-037 POM base (IP68) Cable direction side incl. HDPE base plate Quality cable glands 7-13mm (9/32"- 1/2") cable diameter
Number
300-138+105ST-PRO
Light Color
White
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
6nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438043824
IP rating
IP68
UPC Code
879343043957
Connection
Plug connector
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
