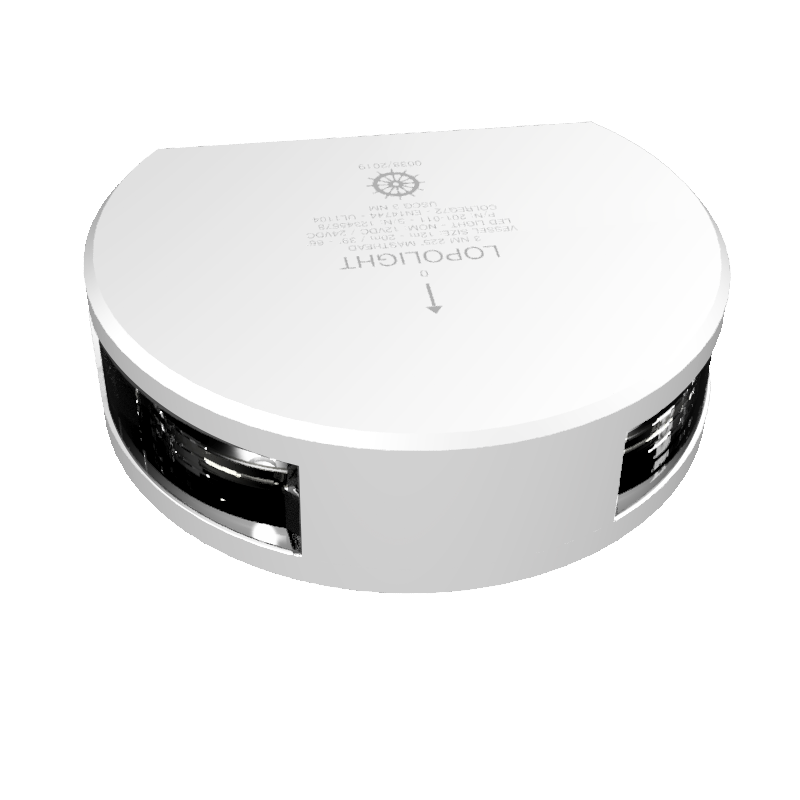

5nm 225° White, masthead, white ceramic coated
P/N: 301-011-WH
5nm masthead, white ceramic coated
Vertical mounted with 0,75m cable
Number
301-011-WH
Light Color
White
Dimensions metric
74,55 x 28 x 73,16
Certification
This Navigation Light is Wheelmarked - based on a certification by DNV, the Declaration of conformity and the certificates can be found on
Dimensions imperial
2.9" x 1.1" x 2.88"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
5nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041394
IP rating
IP68
Power draw (W)
4,1
UPC Code
879343041526
Connection
0.7m cable
Current consumption (mA @ 12VDC)
320
Current consumption (mA @ 24VDC)
170
Vessel size
20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
