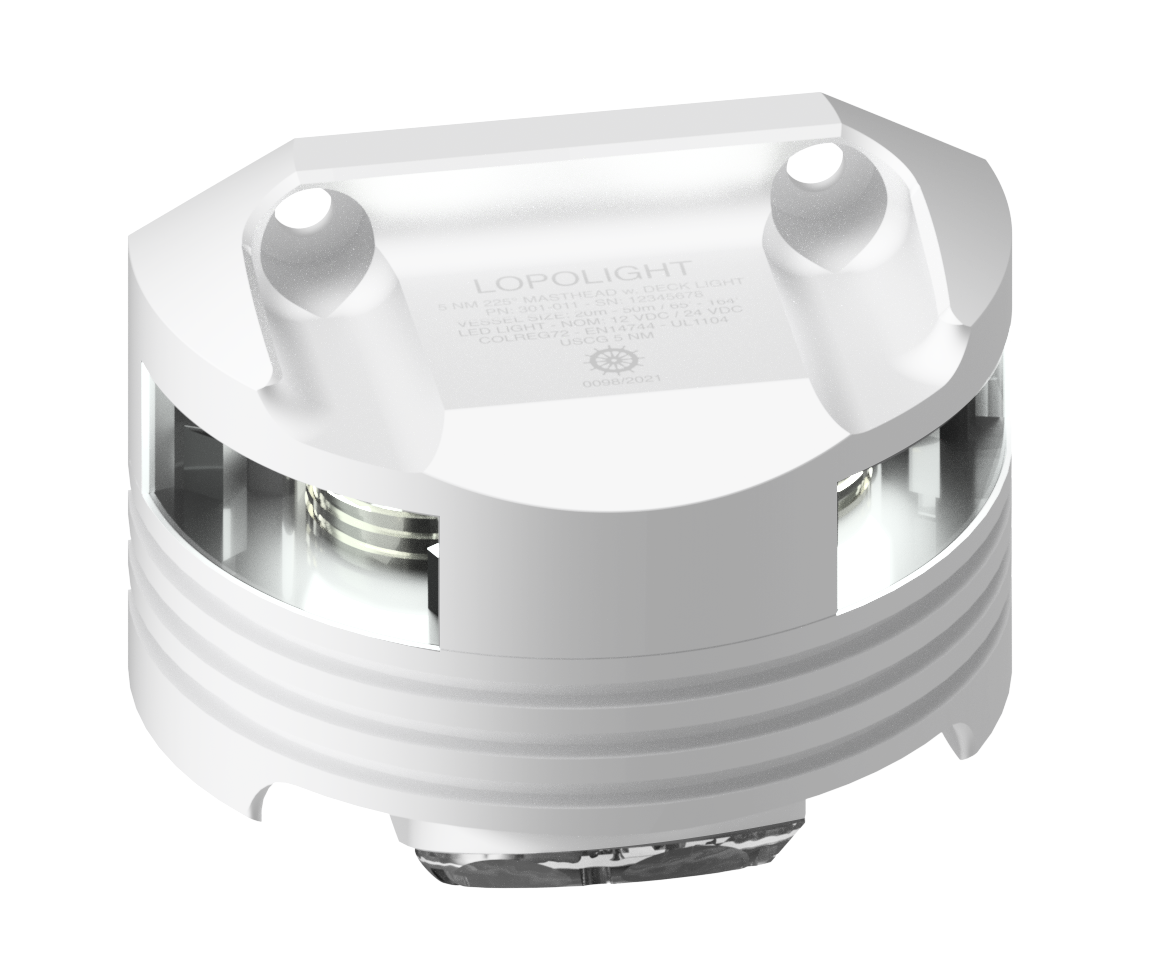

5nm 225° White, masthead+6W decklight, white
P/N: 301-011DLXI-WH 15M
5nm 225° White, masthead+6W decklight, white
White Ceramic Coated Vertical mounted with 15m cable Decklight angled 25° forward Decklight lightbeam is 26°
Number
301-011DLXI-WH 15M
Light Color
White
Dimensions metric
54 x 38,7 x 72,2
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Dimensions imperial
2.1" x 1.5" x 2.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
5nm
Included In Package

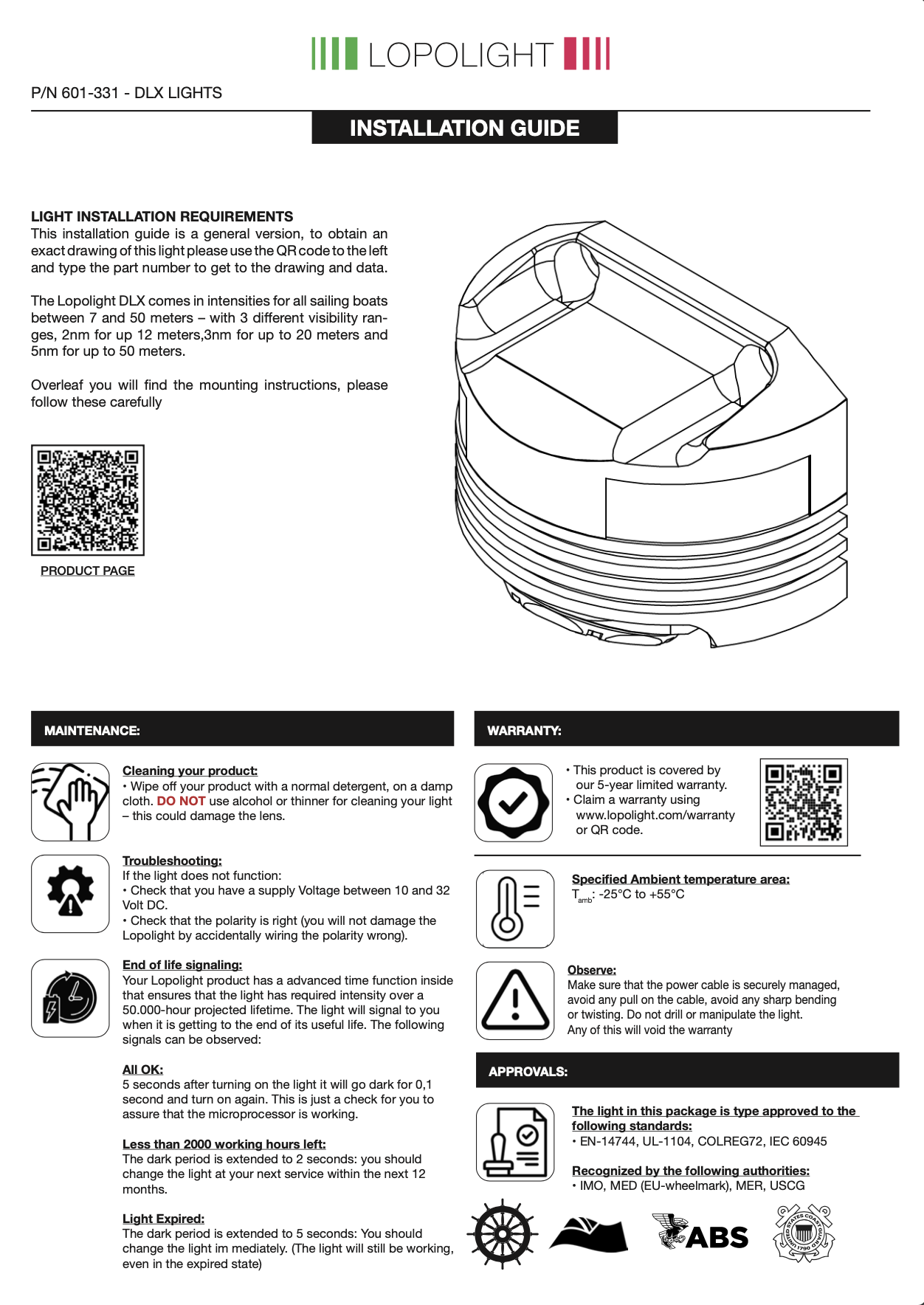

1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438049109
IP rating
IP68
Power draw (W)
4,1
UPC Code
879343049232
Connection
15m cable
Current consumption (mA @ 12VDC)
300
Current consumption (mA @ 24VDC)
200
Vessel size
12-20M,20-50M
Weight (Kg)
1.43 Kg
Weight (Oz)
50.44 Oz
