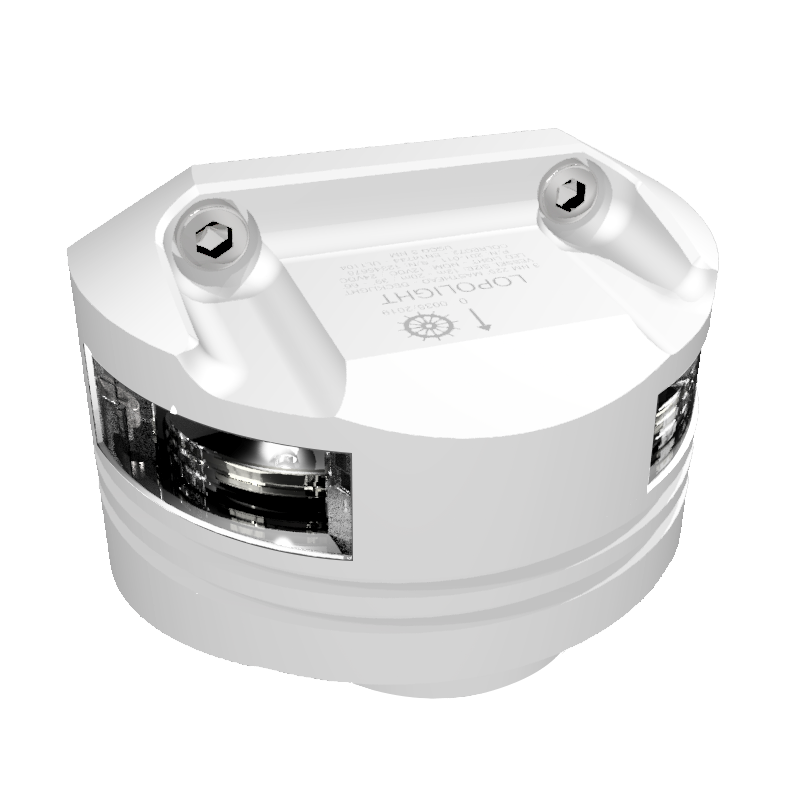

5nm 225° White, Masthead + 6W Decklight, white
P/N: 301-011DLX-WH 15M
5nm Masthead + 6W Decklight, white ceramic coated
Vertical mounted with 15m cable Decklight angled 8° forward Decklight lightbeam is 26°
Number
301-011DLX-WH 15M
Light Color
White
Dimensions metric
54 x 38,7 x 72,2
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>52cd
Dimensions imperial
2.1 x 1.5 x 2.8
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
5nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041356
IP rating
IP68
UPC Code
879343041489
Connection
15m cable
Current consumption (mA @ 12VDC)
320
Current consumption (mA @ 24VDC)
170
Vessel size
20-50M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
