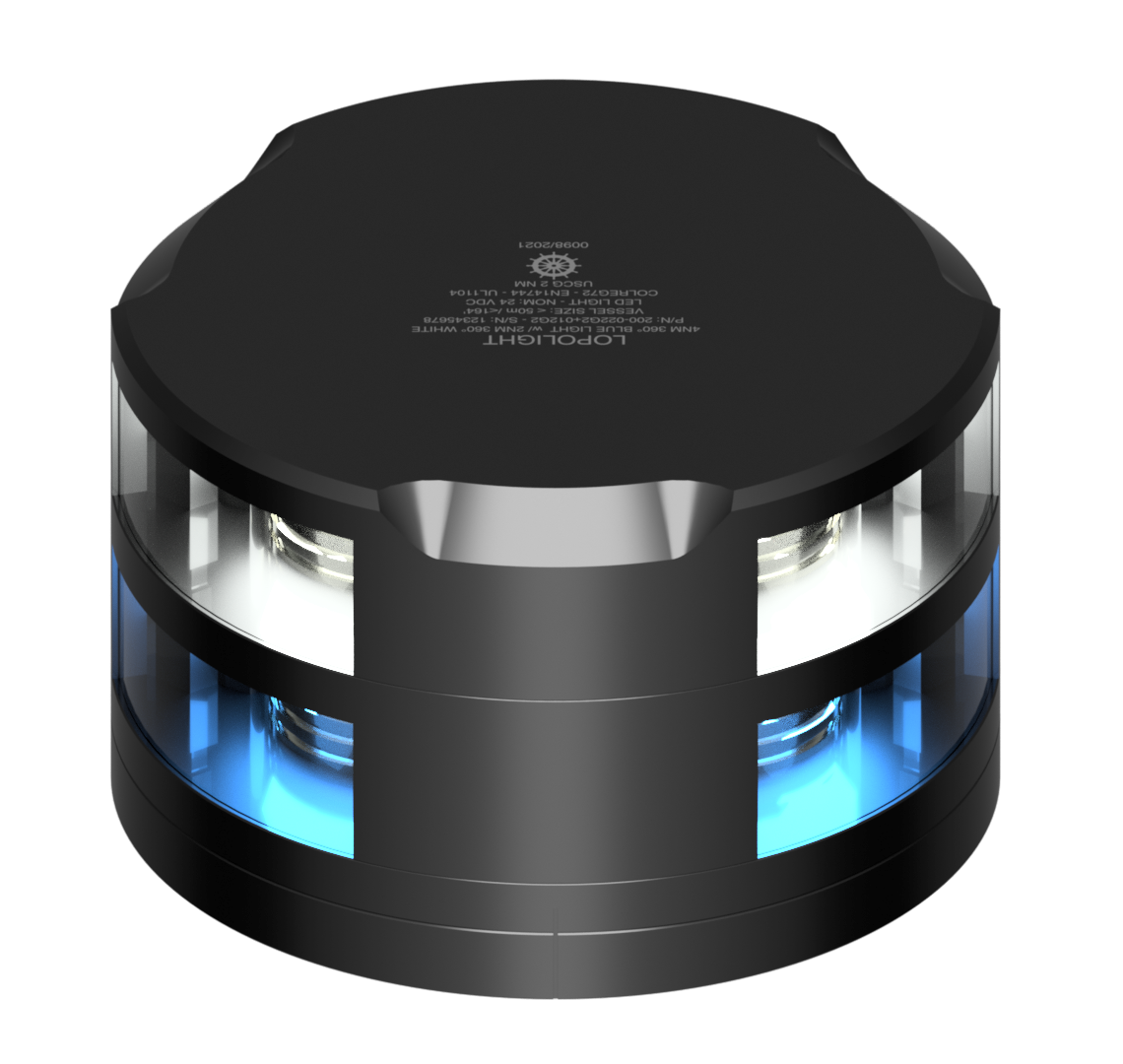

4nm 360° Blue /Strobe w/2nm 360° White, Black
P/N: 201-022S+012-FB-B
4nm 360° Blue /Strobe w/2nm 360° White, Black
Mounted on standard FB base 0.7 meter 3-lead cable for blue strobe 0.7 meter 2-lead cable for white light
Number
201-022S+012-FB-B
Light Color
White,Blue
Certification
Tested to IEC 60945
Approved to
IEC 60945
Visibility
2nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438047877
IP rating
IP68
UPC Code
879343048006
Connection
0.7m cable
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
