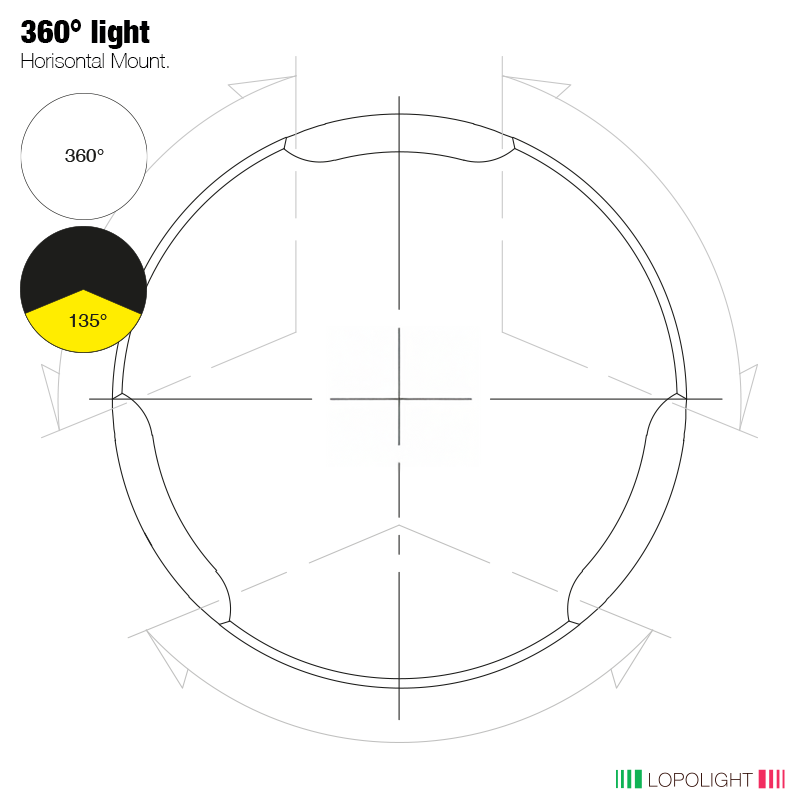

3nm double 360° White & 135° Yellow Towing, Black
P/N: 300-112G2ST+113STB-I
3nm double 360° White & 135° Yellow Towing, Black
With Cable Down (CD) base
Number
300-112G2ST+113STB-I
Light Color
White
Dimensions metric
Ø92,5mm x 96,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 3.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438042063
IP rating
IP68
Power draw (W)
4,2
UPC Code
879343042196
Connection
Plug connector
Current consumption (mA @ 12VDC)
254
Current consumption (mA @ 24VDC)
149
Vessel size
Over 50M
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
