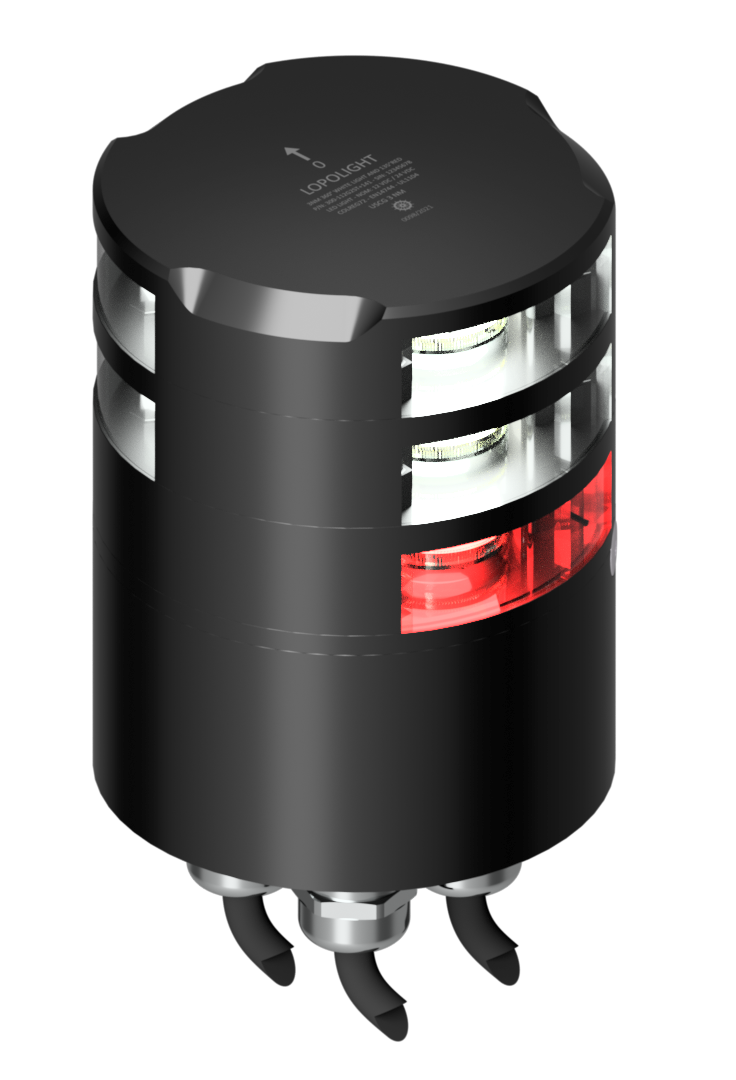

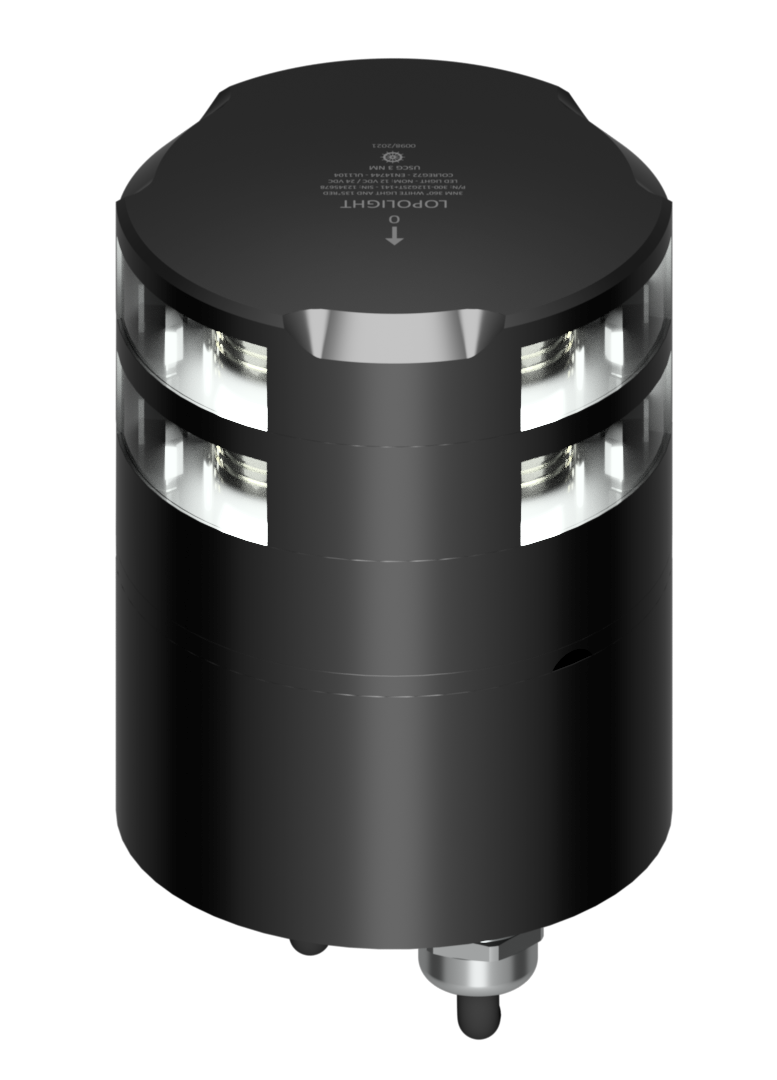

3nm 360° White, Dbl +3nm 135° Red Suez Stop, black
P/N: 300-112G2ST+141-B-CD
3nm Dbl 360° white+3nm135° red suez stop, black
Horizontally mounted on 400-035 alu base (IP68) Cable direction down incl. HDPE base plate Quality cable glands - 1 sizes included: 7-13mm (9/32"- 1/2") cable diameter
Number
300-112G2ST+141-B-CD
Light Color
White
Dimensions metric
See drawing
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>15cd
Dimensions imperial
See drawing
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Operating temperature
-25°C to 55°C
Operating Voltage
10-32VDC
EAN
5704438020511
IP rating
IP68
UPC Code
879343020644
Connection
Plug connector
Current consumption (mA @ 12VDC)
270
Current consumption (mA @ 24VDC)
176
Vessel size
Over 50M
Weight (Kg)
1.78 Kg
Weight (Oz)
62.78 Oz
