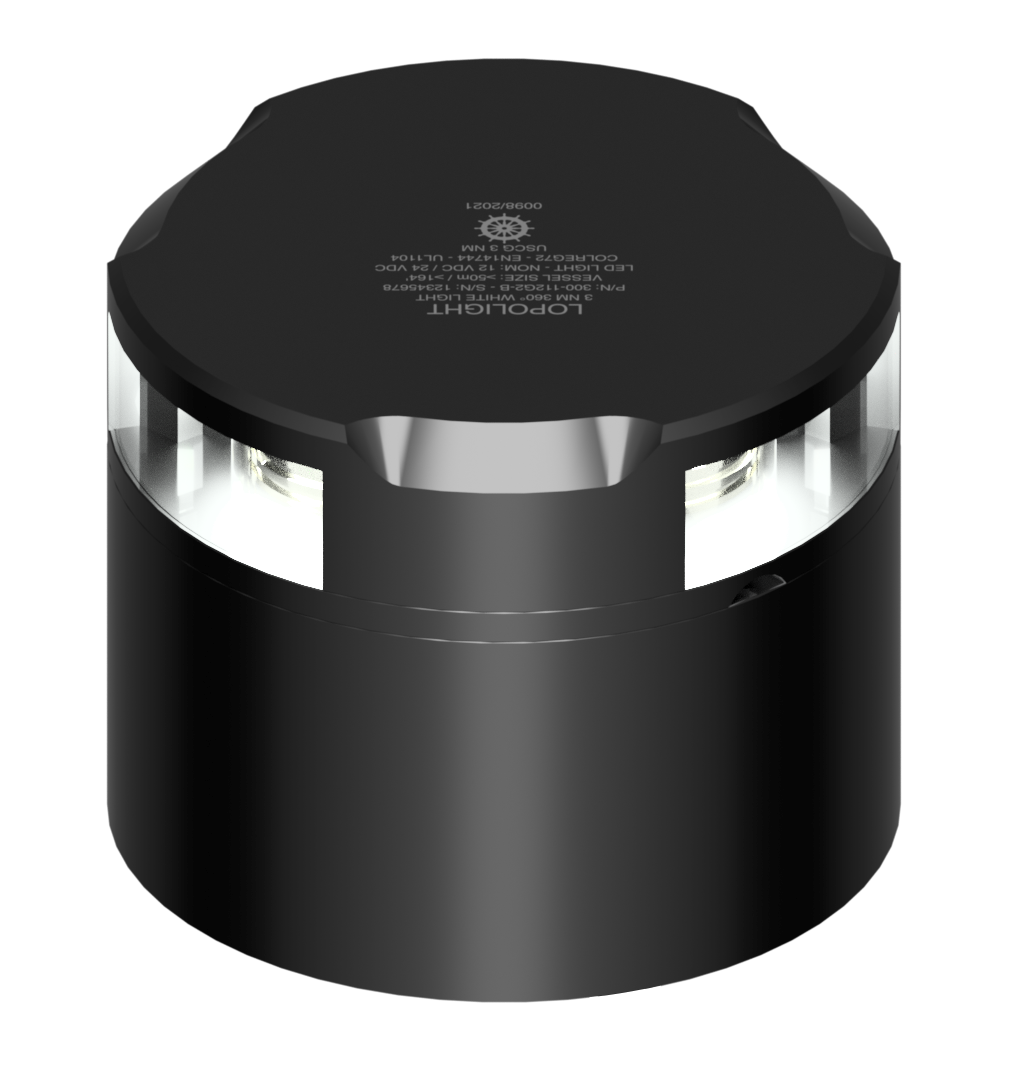

3nm 360° White/135° Stern,blk w/Conn&Alu-baseCSCD
P/N: 301-030-B-CSCD
3nm 360° White/135° Stern,blk w/Conn&Alu-baseCSCD
Silver anodized With connector IP68 Aluminium base
Number
301-030-B-CSCD
Light Color
White
Dimensions metric
Ø92,5mm x 74,5mm
Certification
This product is tested to IEC 60945
Intensity
>15cd
Dimensions imperial
Ø3.6" x 2.9"
Approved to
IEC 60945
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438046702
IP rating
IP68
UPC Code
879343046835
Connection
Plug connector
Current consumption (mA @ 12VDC)
270
Current consumption (mA @ 24VDC)
176
Vessel size
12-20M
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
