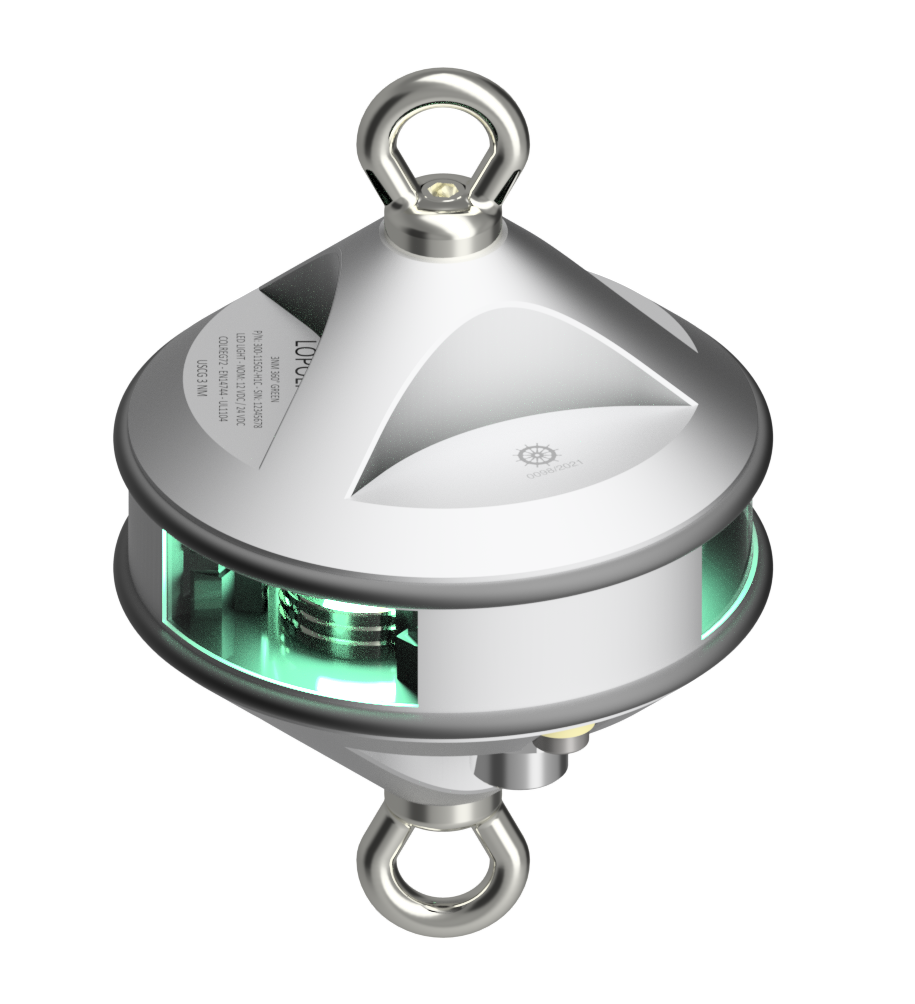

3nm 360° Green, hoist, silver anodized
P/N: 300-115G2-H1C-P
3nm 360° Green, hoist, silver anodized
1 connector, Programmable, RS485
Number
300-115G2-H1C-P
Light Color
Green
Dimensions metric
Ø92,5mm x 89,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 3.5"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438047099
IP rating
IP68
Power draw (W)
4,2
UPC Code
879343047221
Connection
M12 connector
Current consumption (mA @ 12VDC)
350
Current consumption (mA @ 24VDC)
220
Vessel size
Over 50M
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
