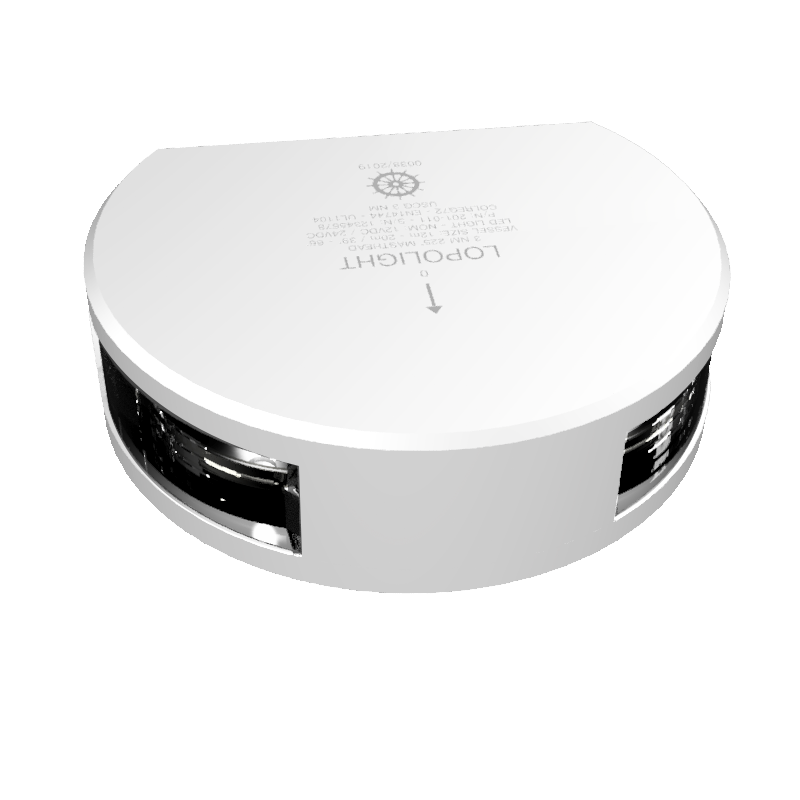

3nm 225° White, Masthead, white ceramic coated
P/N: 201-011-WH
3nm Masthead, white ceramic coated
Vertically mounted with 0,75m cable
Number
201-011-WH
Light Color
White
Dimensions metric
74,55 x 28 x 73,16
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>15cd
Dimensions imperial
2.9 x 1.1 x 2.88
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041370
IP rating
IP68
UPC Code
879343041502
Connection
0.7m cable
Current consumption (mA @ 12VDC)
232
Current consumption (mA @ 24VDC)
127
Vessel size
12-20M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
