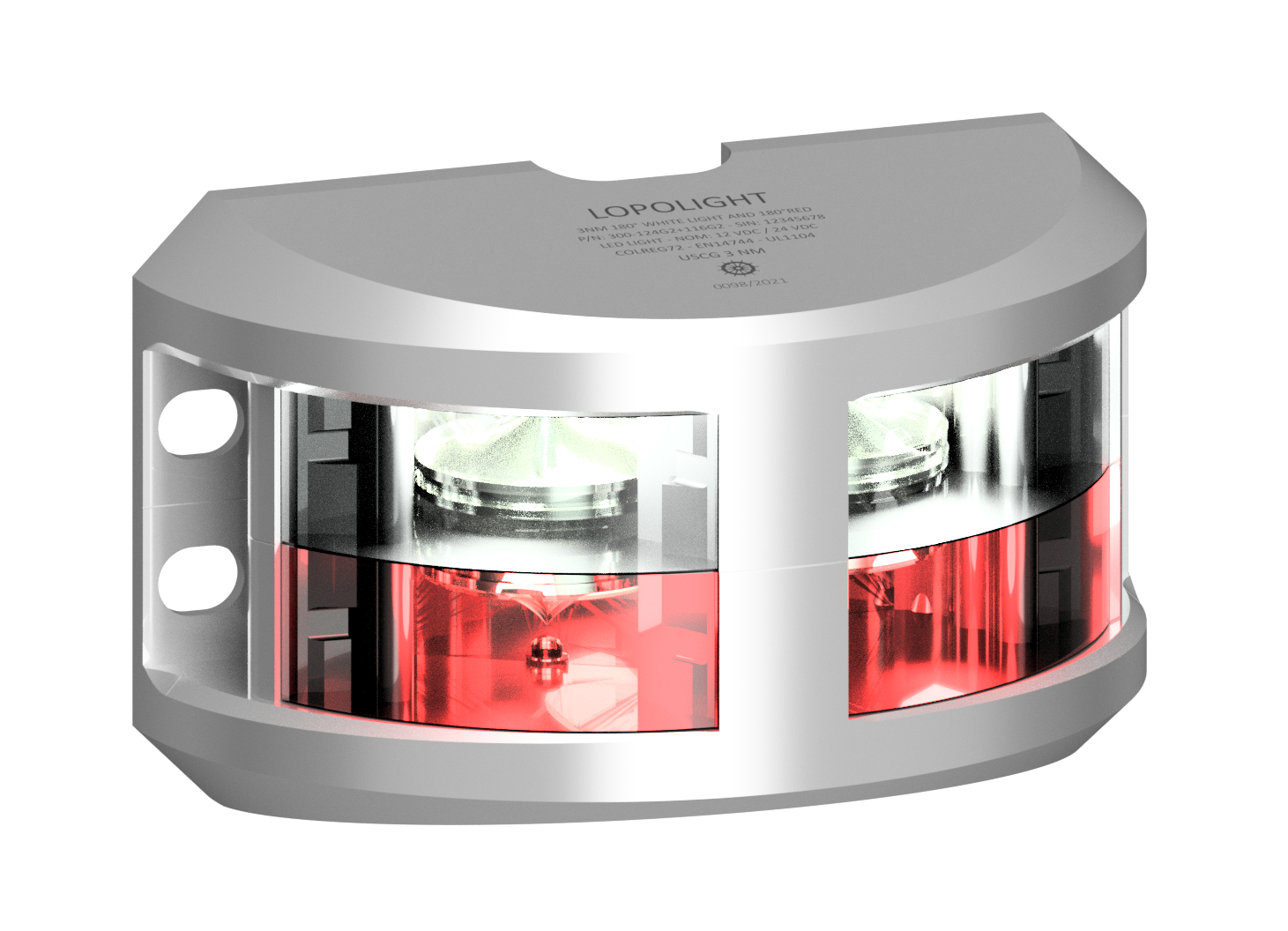

3nm 180° White & Red, Silver anodized
P/N: 300-124G2+116G2
3nm 180° White & Red, Silver anodized
Vertical mounted with 0,75m cables
Number
300-124G2+116G2
Light Color
Red,White
Dimensions metric
See drawings
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
See drawings
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438045477
IP rating
IP68
UPC Code
879343045609
Connection
0.7m cable
Current consumption (mA @ 12VDC)
23
Current consumption (mA @ 24VDC)
131
Vessel size
Over 50M
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
