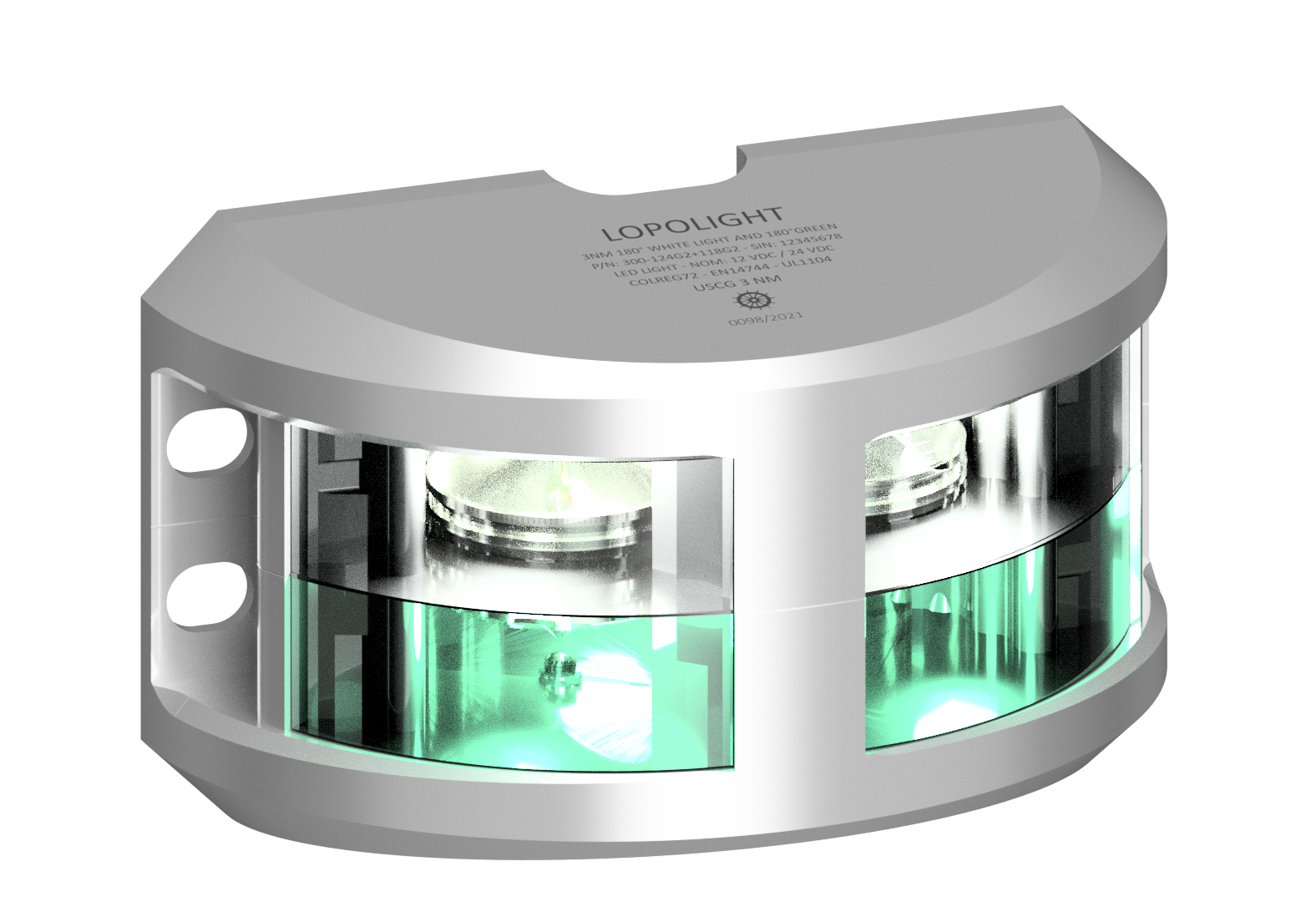

3nm 180° White & Green, Silver anodized
P/N: 300-124G2+118G2
3nm 180° White & Green, Silver anodized
Vertical mounted with 0,75m cables
Number
300-124G2+118G2
Light Color
Green,White
Dimensions metric

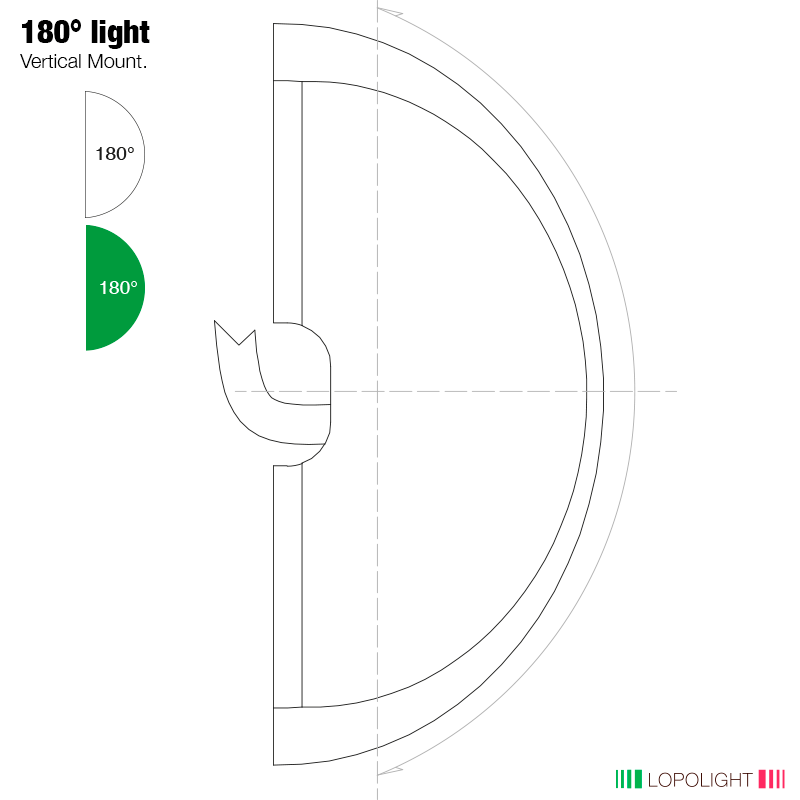

See drawings
Dimensions imperial
See drawings
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438043817
IP rating
IP68
UPC Code
879343043940
Connection
0.7m cable
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Vessel size
Over 50M
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
