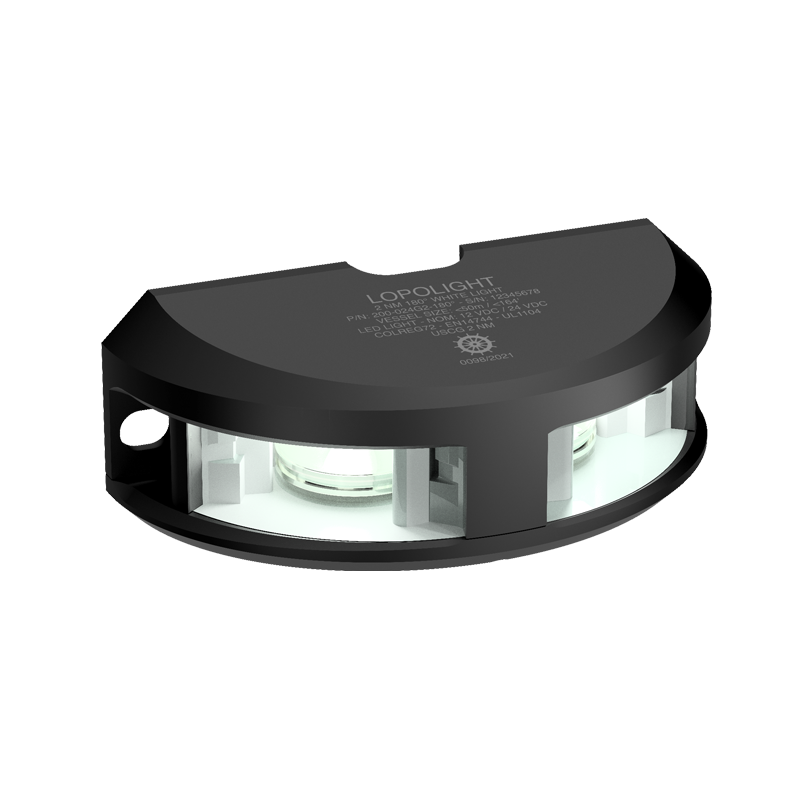

3nm 180° White, black anodized
P/N: 300-124G2-B 20M
3nm 180° White, black anodized
Vertical mounted with 20m cable
Number
300-124G2-B 20M
Light Color
White
Dimensions metric
See drawings
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
See drawings
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438021136
IP rating
IP68
UPC Code
879343021269
Connection
0.7m cable
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Vessel size
Over 50M
Weight (Kg)
0.99 Kg
Weight (Oz)
34.81 Oz
