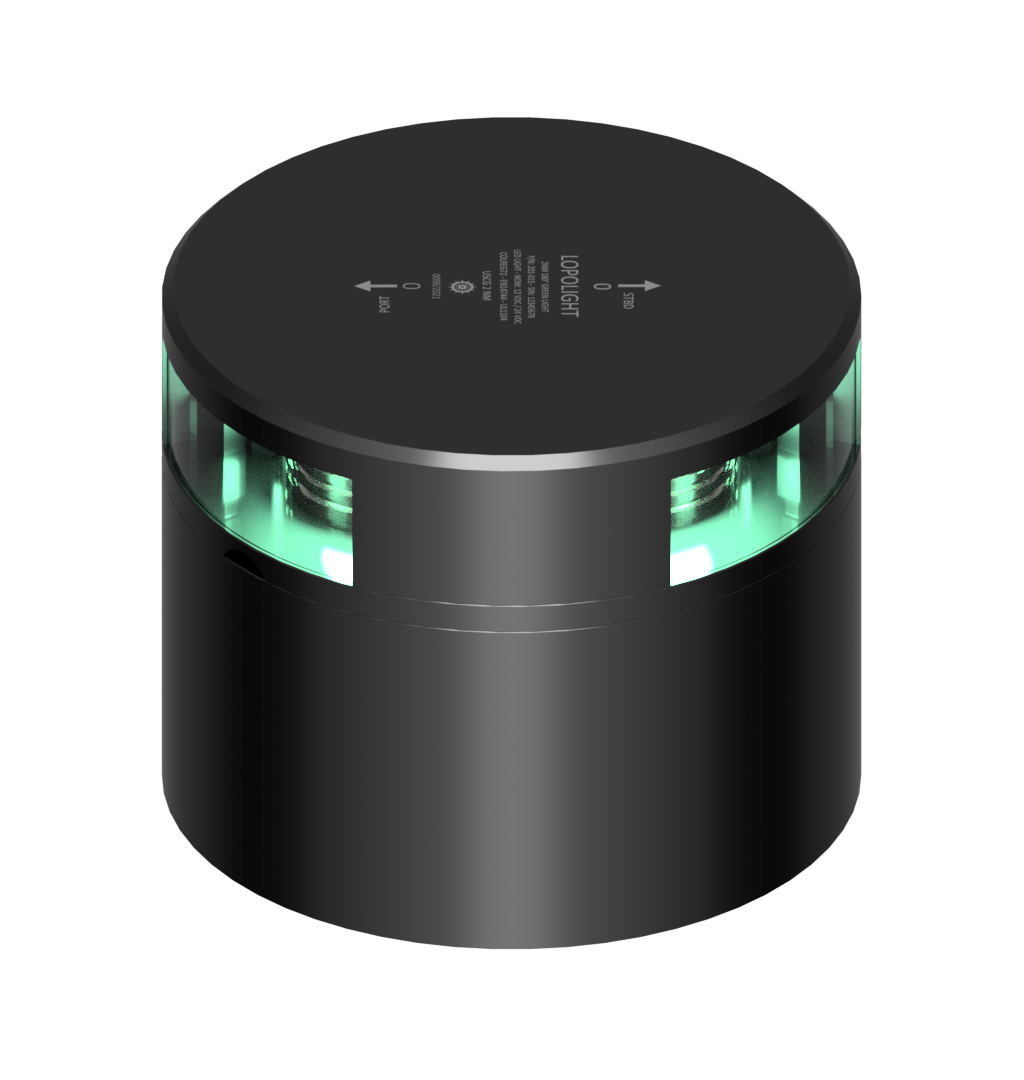

3nm 180° Green, black anodized
P/N: 300-115G2-B-CD-180
3nm 180° Green, black anodized, hor CD mnt
Horizontally mounted on 400-035 alu base (IP68) Cable direction down incl. HDPE base plate Quality cable glands - 1 sizes included: 7-13mm (9/32"- 1/2") cable diameter
Number
300-115G2-B-CD-180
Light Color
Green
Dimensions metric
See drawing
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>15cd
Dimensions imperial
See drawing
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Operating temperature
-25°C to 55°C
Operating Voltage
10-32VDC
EAN
5704438019607
IP rating
IP68
UPC Code
879343019730
Connection
Plug connector
Current consumption (mA @ 12VDC)
182
Current consumption (mA @ 24VDC)
176
Vessel size
Over 50M
Weight (Kg)
0.96 Kg
Weight (Oz)
33.86 Oz
