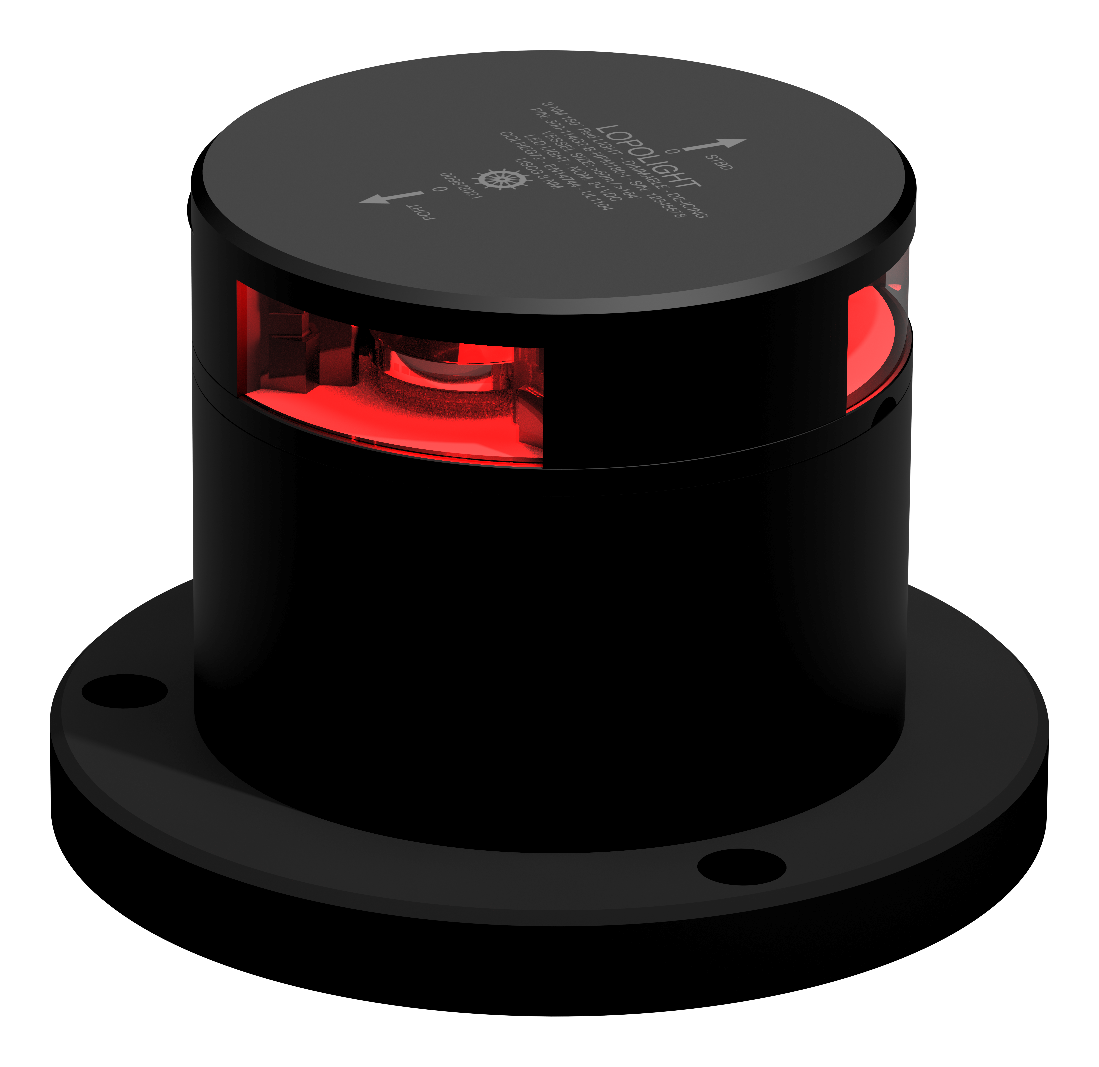

3nm 170° Red, Ice-class, black anodized
P/N: 300-114G2-PRO-I-170
3nm 170° Red, Ice-class, black anodized
Built-in De-icing function Horizontally mounted on 400-037 POM base (IP68) Cable direction side incl. HDPE base plate & glands
Number
300-114G2-PRO-I-170
Light Color
Red
Dimensions metric
Ø92,5mm x 89,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support<
Dimensions imperial
Ø3.6" x 3.5"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438042230
IP rating
IP68
Power draw (W)
2,9
UPC Code
879343042363
Connection
Plug connector
Current consumption (mA @ 12VDC)
210
Current consumption (mA @ 24VDC)
120
Vessel size
Over 50M
Min. feed wire gauge
1.5mm2 AWG18
Weight (Kg)
1.16 Kg
Weight (Oz)
40.91 Oz
