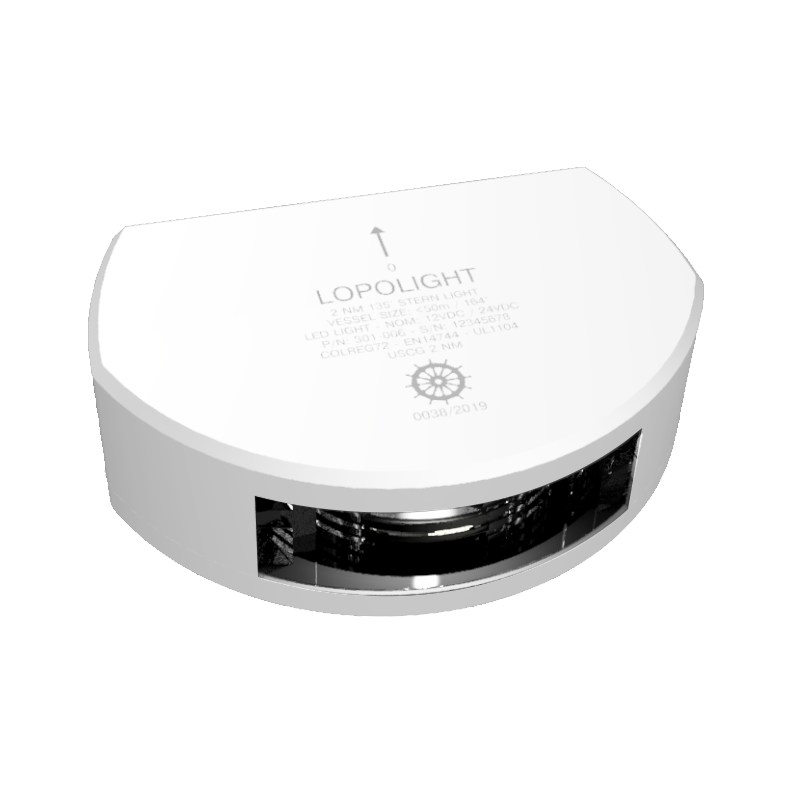

3nm 135° White, Stern, white ceramic coated
P/N: 301-106-WH
3nm Stern, white ceramic coated
White ceramic finish Vertically mounted with 2,5m cable
Number
301-106-WH
Light Color
White
Dimensions metric
86,2 x 28 x 57,75
Intensity
>15cd
Dimensions imperial
3.3 x 1.1 x 2.27
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041318
IP rating
IP68
UPC Code
879343041441
Connection
2.5m cable
Current consumption (mA @ 12VDC)
130
Current consumption (mA @ 24VDC)
72
Vessel size
Over 50M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
