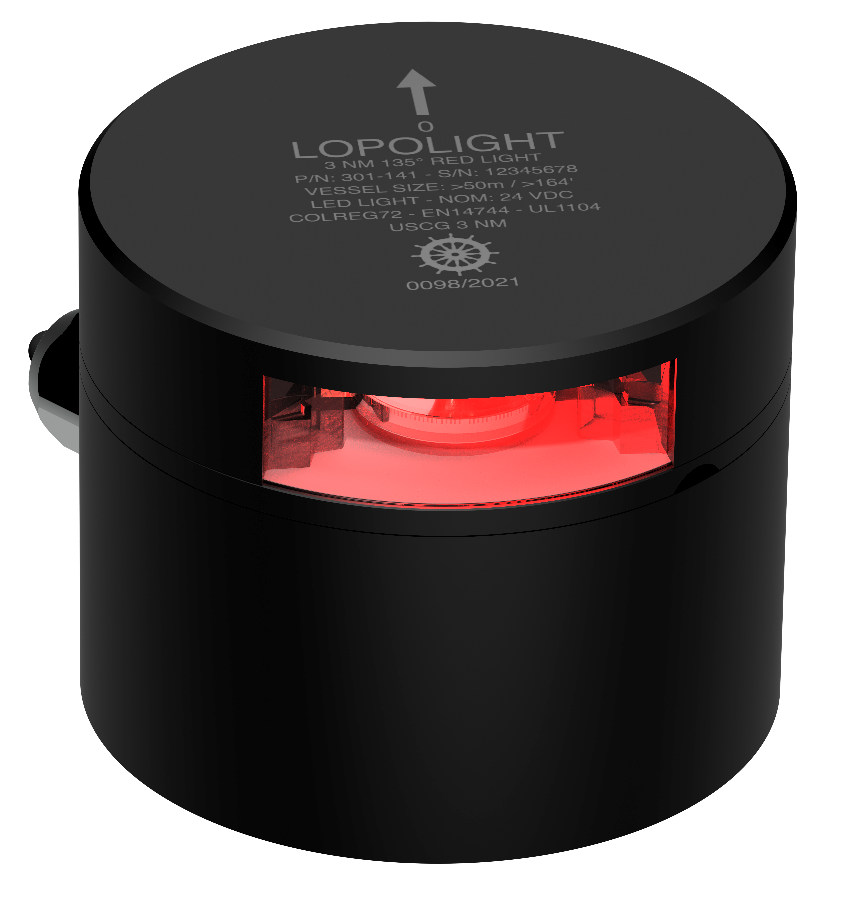

3nm 135° Red Stop, Dimmable, black
P/N: 301-141-B-NPC
3nm 135° Red Stop, Dimmable, black
RS485 Controllable light
Number
301-141-B-NPC
Light Color
Red
Dimensions metric
Ø92,5mm x 89,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>15cd
Dimensions imperial
Ø3.6" x 3.5"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
3nm
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438041820
IP rating
IP68
Power draw (W)
2,9
UPC Code
879343041953
Connection
Plug connector
Current consumption (mA @ 12VDC)
210
Special Attributes
Dimmable (NAVY/SAR only)
Stock status
Made to order
Current consumption (mA @ 24VDC)
120
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
