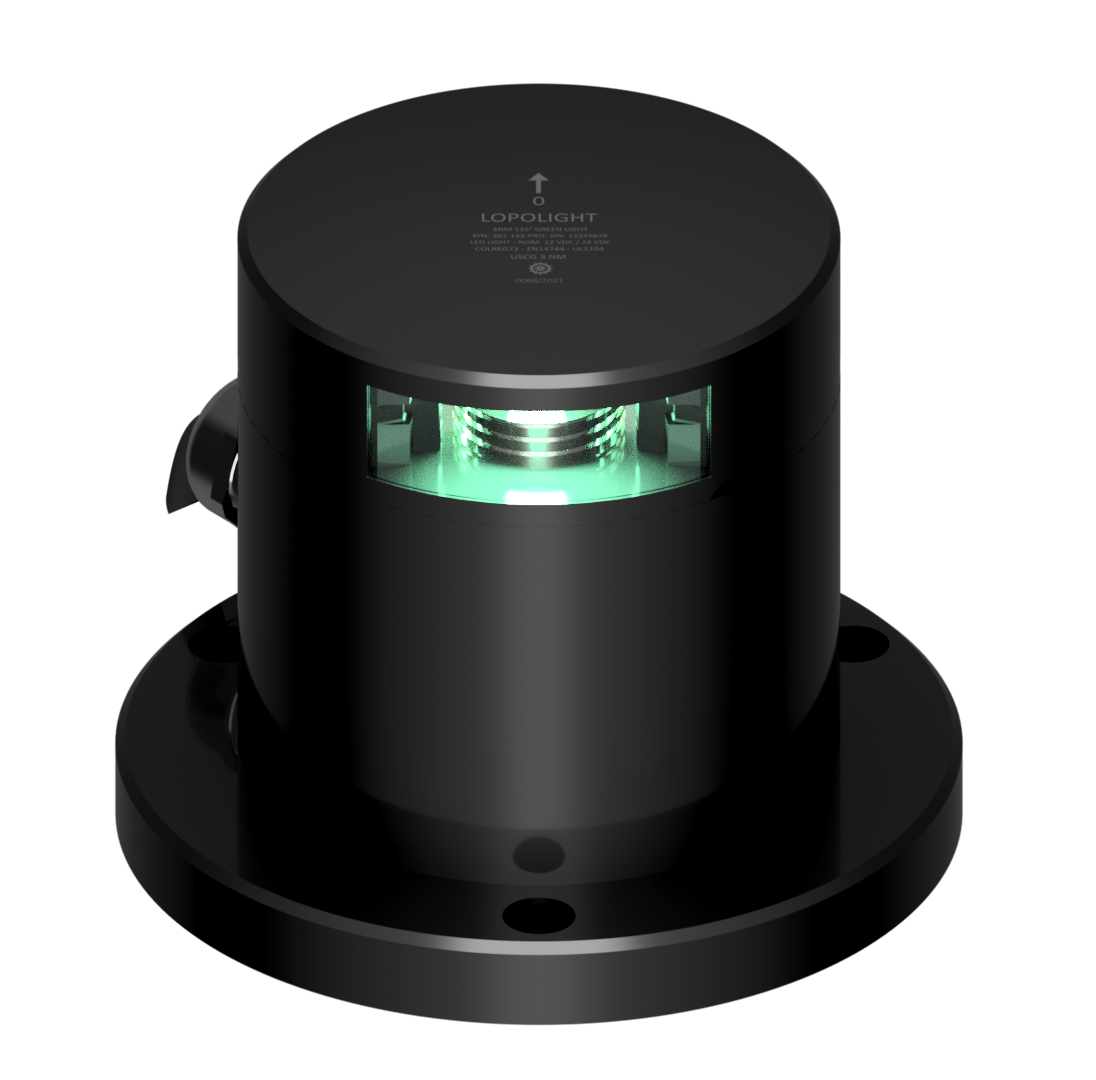

3nm 135° Green Kiel stop, black anodized
P/N: 301-142-PRO
3nm 135° Green Kiel stop, black anodized.
Horizontally mounted on 400-037 POM base (IP68) Cable direction side incl. HDPE base plate Quality cable glands 7-13mm (9/32"- 1/2") cable diameter
Number
301-142-PRO
Light Color
Green
Dimensions metric
Ø92,5mm x 103,5mm
Certification
Tested to IEC 60945
Intensity
>15cd
Dimensions imperial
Ø3.6" x 4"
Approved to
IEC 60945
Visibility
3nm
Included In Package
1 Navigation light,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438038097
IP rating
IP68
Power draw (W)
2,5
UPC Code
879343038229
Connection
Plug connector
Current consumption (mA @ 12VDC)
180
Current consumption (mA @ 24VDC)
60
Vessel size
Over 50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
