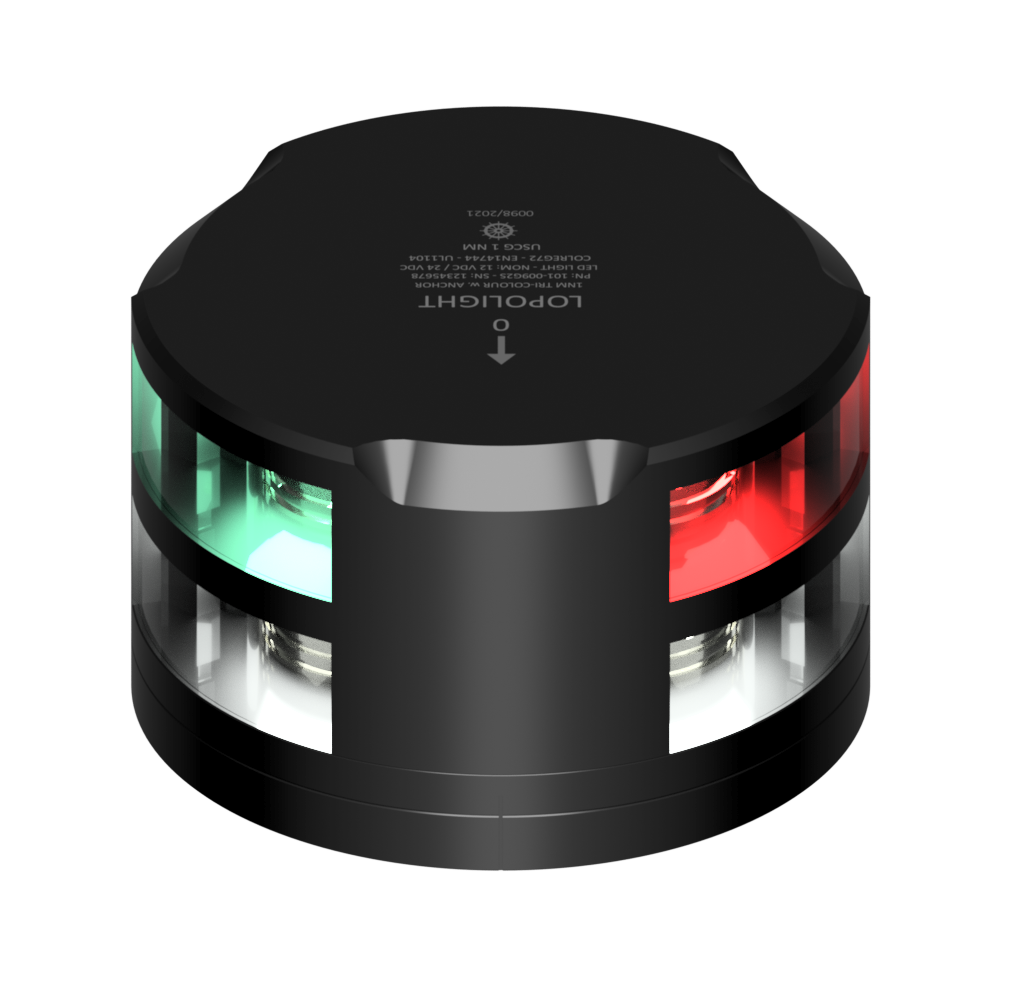

2nm Tri-color/anchor, black w/FB base
P/N: 201-007-FB-B
For sailing yachts up to 20 meters Horizontally mounted with 0,7m cable FB (flat base) POM mounting system
Number
201-007-FB-B
Dimensions metric
Ø92,5mm x 36mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 1.4"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438044340
IP rating
IP68
Power draw (W)
2.6
UPC Code
879343044473
Connection
0.7m cable
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
81
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.72 Kg
Weight (Oz)
25.39 Oz
