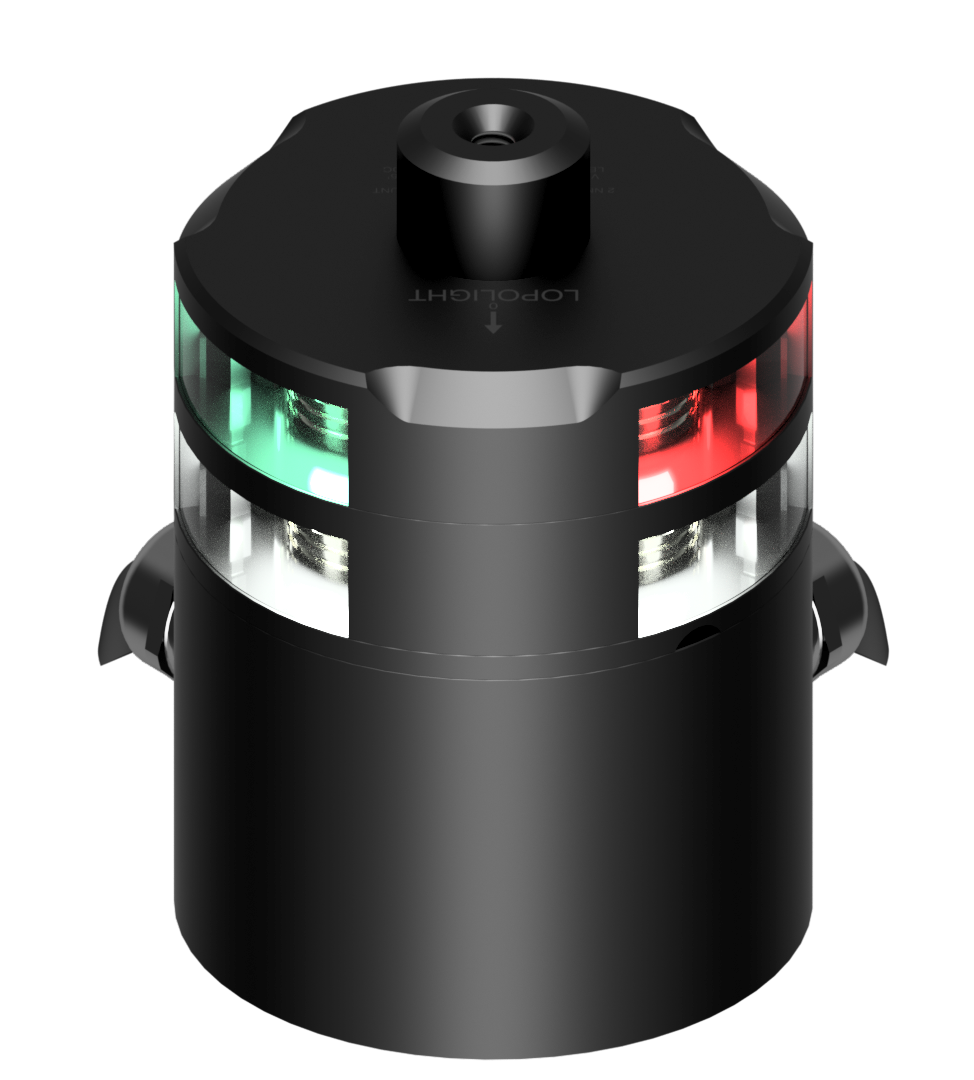

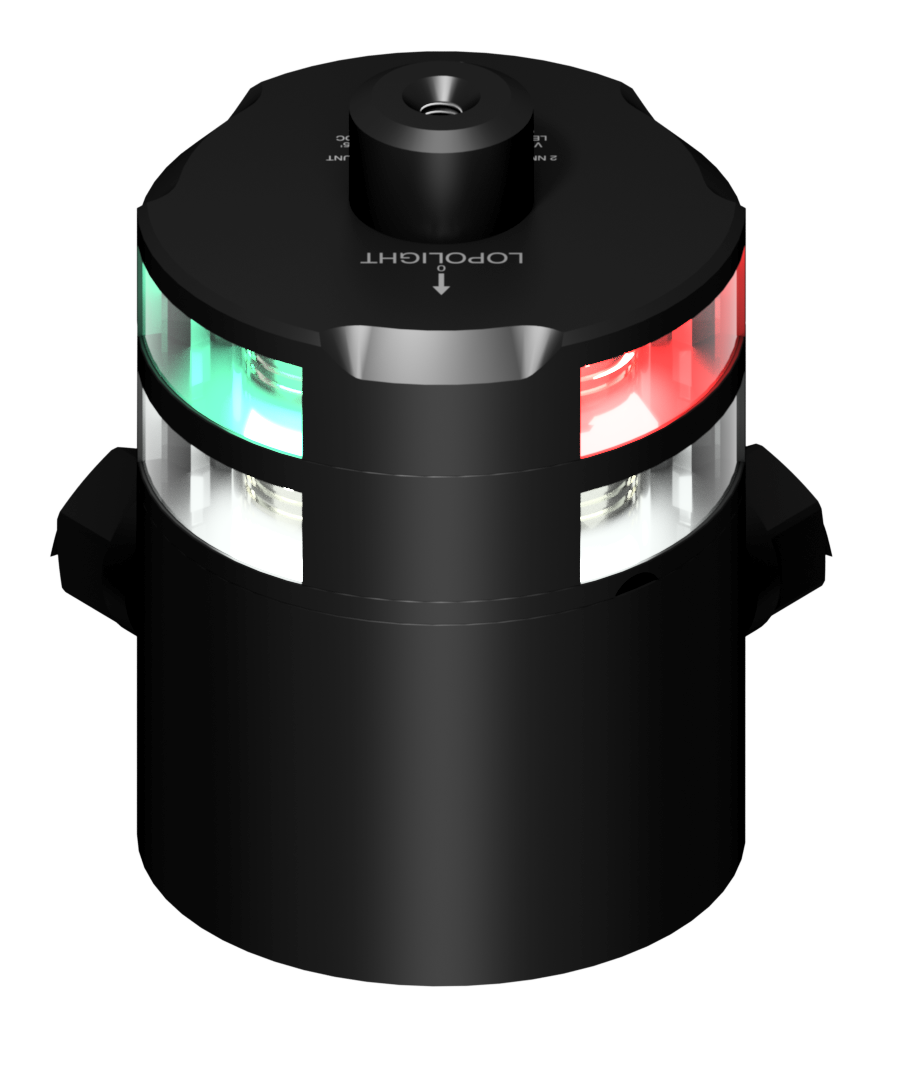

2nm Tri-Anchor w/Windex w/IP68 base & conn.
P/N: 201-007W-B TB
Horizontally mounted on POM base The base is IP68 waterproof Includes cable gland for 4-14mm cable with connector.
Number
201-007W-B TB
Dimensions metric
Ø92,5mm x 36mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 1.4"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438043374
IP rating
IP68
Power draw (W)
2.6
UPC Code
879343043506
Connection
0.7m cable
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
81
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.94 Kg
Weight (Oz)
33.25 Oz
