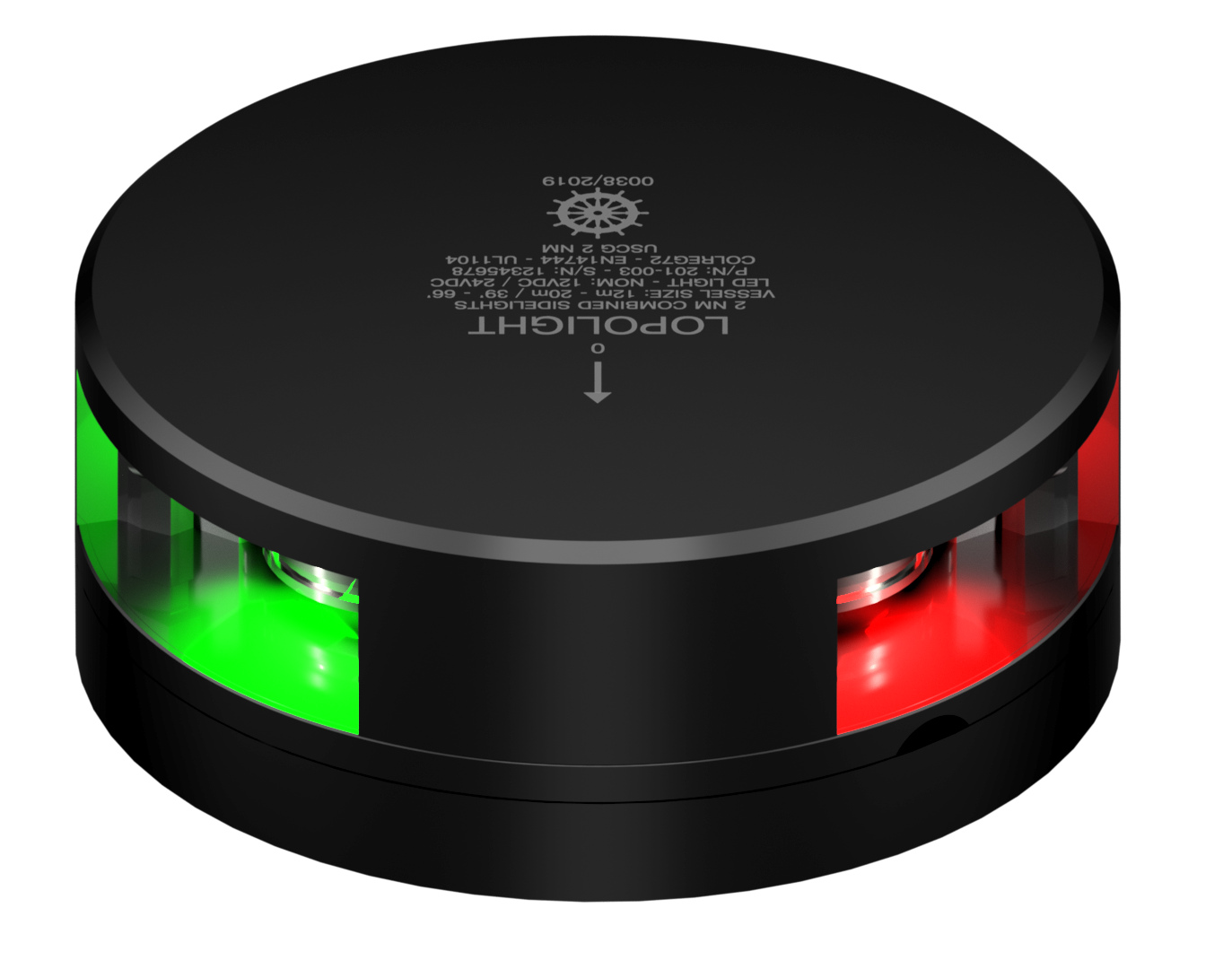

2nm Combined Sidelights, black anodized, UL base
P/N: 201-003-B-UL
2nm Combined Sidelights, black anodized, UL base
Horizontal mounted with 2.5m cable With UL-mounting ring 400-036-B
Number
201-003-B-UL
Light Color
Red,Green
Intensity
>5.4cd
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV
Visibility
2nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Operating Voltage
10-32VDC
EAN
5704438041899
IP rating
IP68
UPC Code
879343042028
Connection
2.5m cable
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Vessel size
12-20M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
