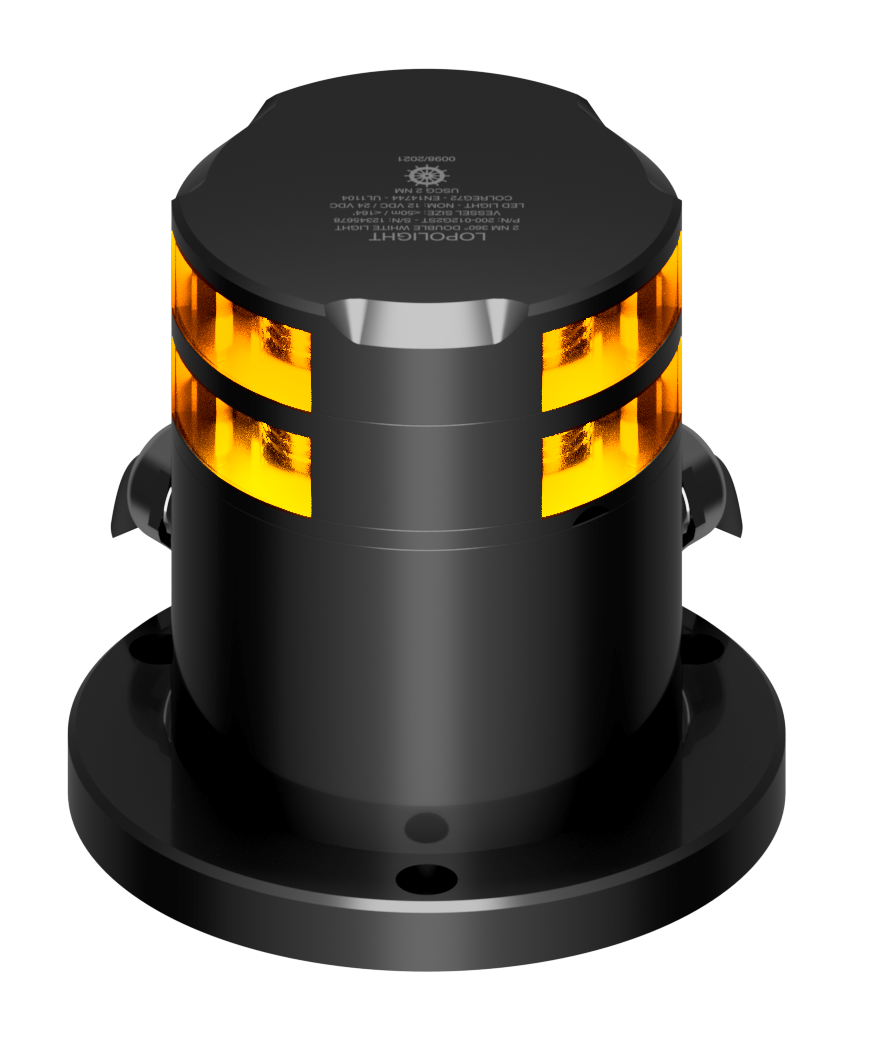

2nm 360° Yellow, Double, black anodized
P/N: 200-023G2ST-PRO
2nm 360° Yellow, Double, black anodized
Horizontally mounted on POM base (IP68) incl.HDPE base plate Quality cable glands
Number
200-023G2ST-PRO
Light Color
Yellow
Dimensions metric
Ø92,5mm x 96,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 3.8"
Approved to
IEC 60945
Visibility
2nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438038103
IP rating
IP68
Power draw (W)
3,6
UPC Code
879343038236
Connection
Plug connector
Current consumption (mA @ 12VDC)
170
Current consumption (mA @ 24VDC)
105
Vessel size
All Sizes
Weight (Kg)
1.2 Kg
Weight (Oz)
42.32 Oz
