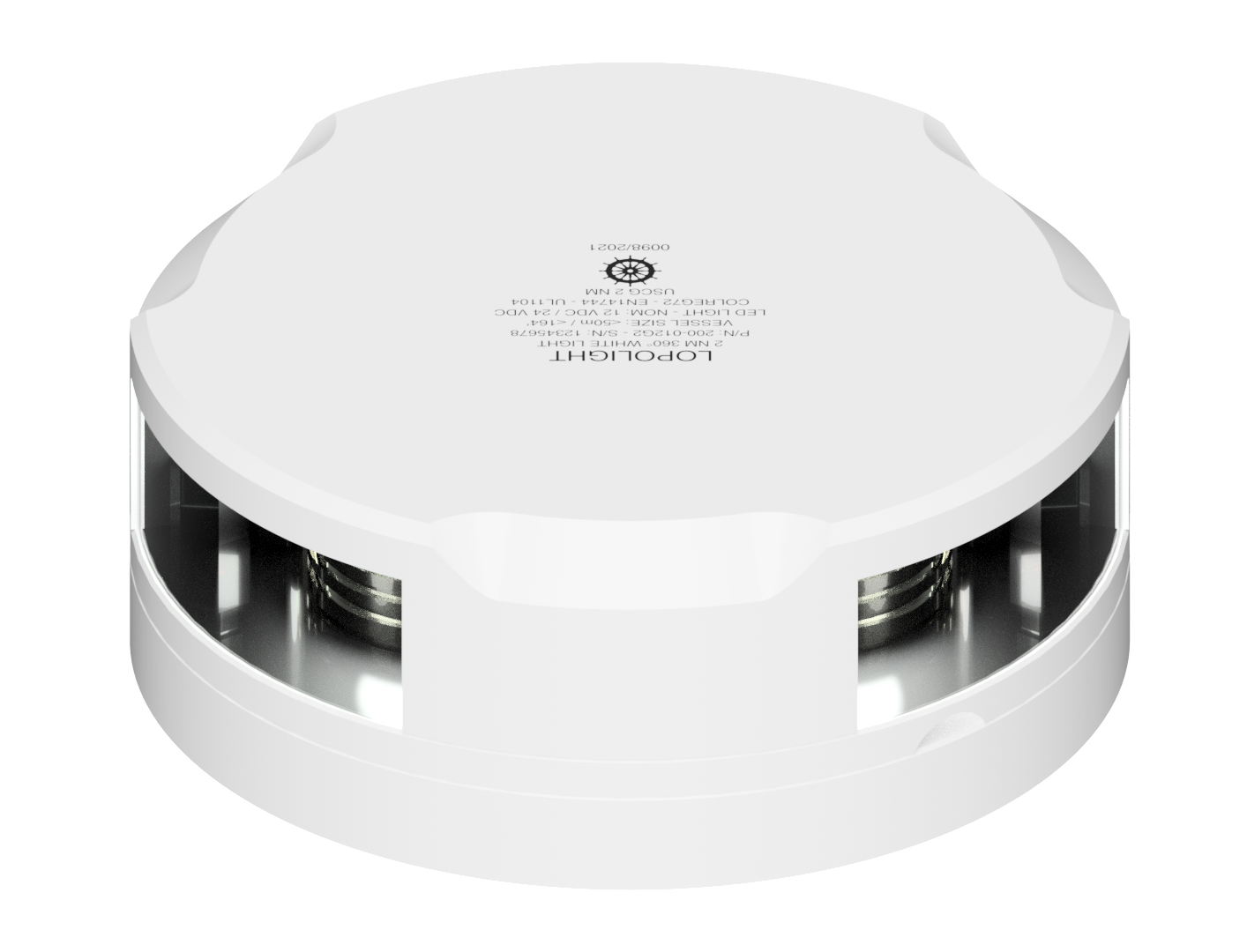

2nm 360° White, white ceramic coated, UL
P/N: 201-012-WH-UL
2nm 360° White, white ceramic coated, UL
White ceramic finish Ultra low Aluminium mounting ring 0,7 meter cable
Number
201-012-WH-UL
Light Color
White
Dimensions metric
Ø92,5mm x 46mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>5.4cd
Dimensions imperial
Ø3.6 x 1.8
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Operating Voltage
10-32VDC
EAN
5704438041172
IP rating
IP68
UPC Code
879343041304
Connection
0.7m cable
Current consumption (mA @ 12VDC)
167
Current consumption (mA @ 24VDC)
110
Vessel size
Under 12M,12-20M,20-50M
Weight (Kg)
0.48 Kg
Weight (Oz)
16.93 Oz
