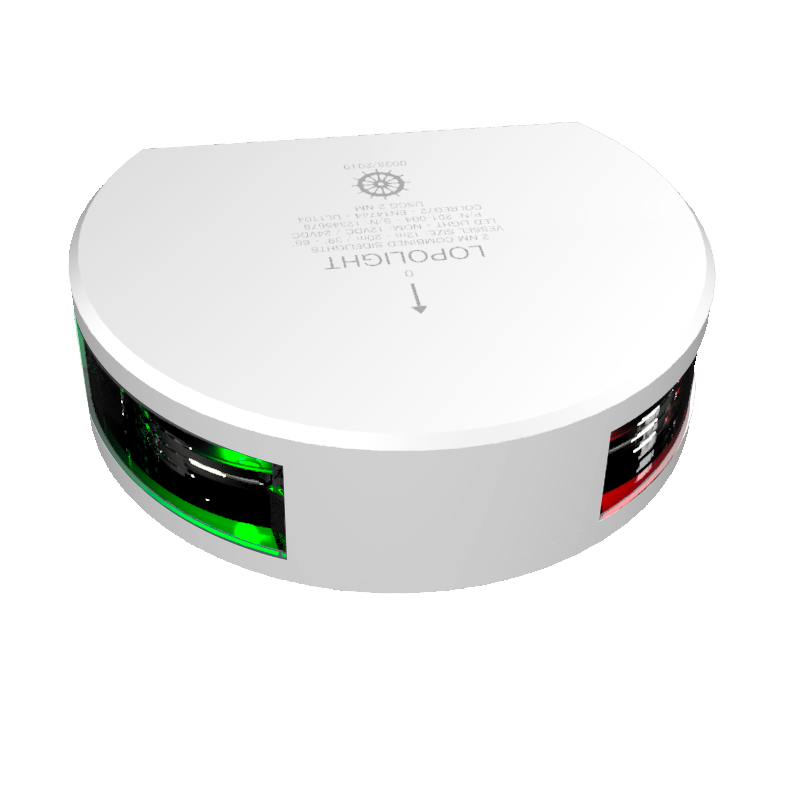

2nm 2x112,5° Red/Green Sidelight, white coated
P/N: 201-004-WH
2nm Combined Sidelights, white ceramic coated
Vertically mounted with 2,5m cable
Number
201-004-WH
Light Color
Red,Green
Dimensions metric
74,55 x 28 x 73,16
Certification
This Navigation Light is Wheelmarked - based on a certification by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>5.4cd
Dimensions imperial
2.9 x 1.1 x 2.88
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041363
IP rating
IP68
UPC Code
879343041496
Connection
2.5m cable
Current consumption (mA @ 12VDC)
163
Current consumption (mA @ 24VDC)
90
Vessel size
12-20M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
