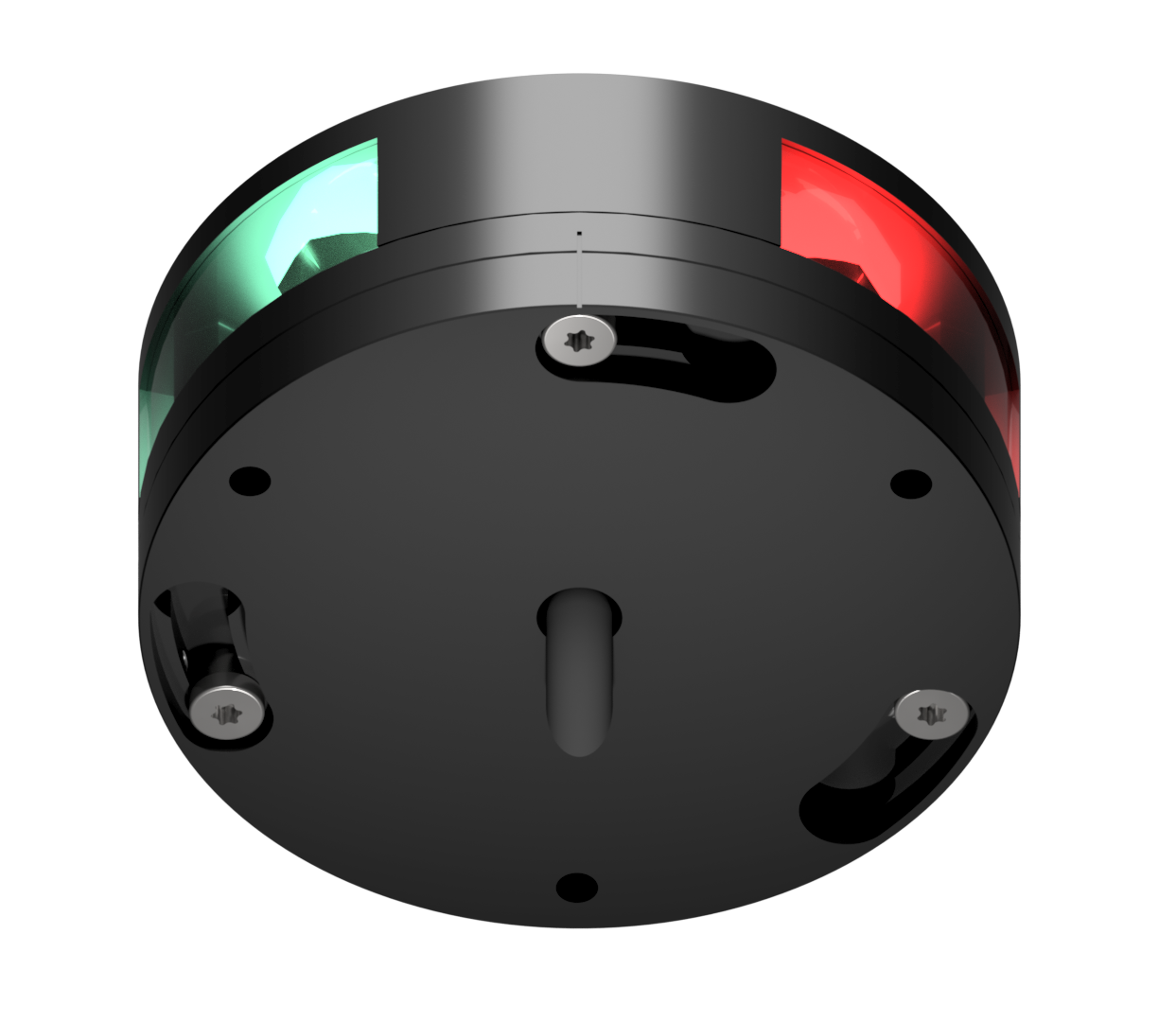

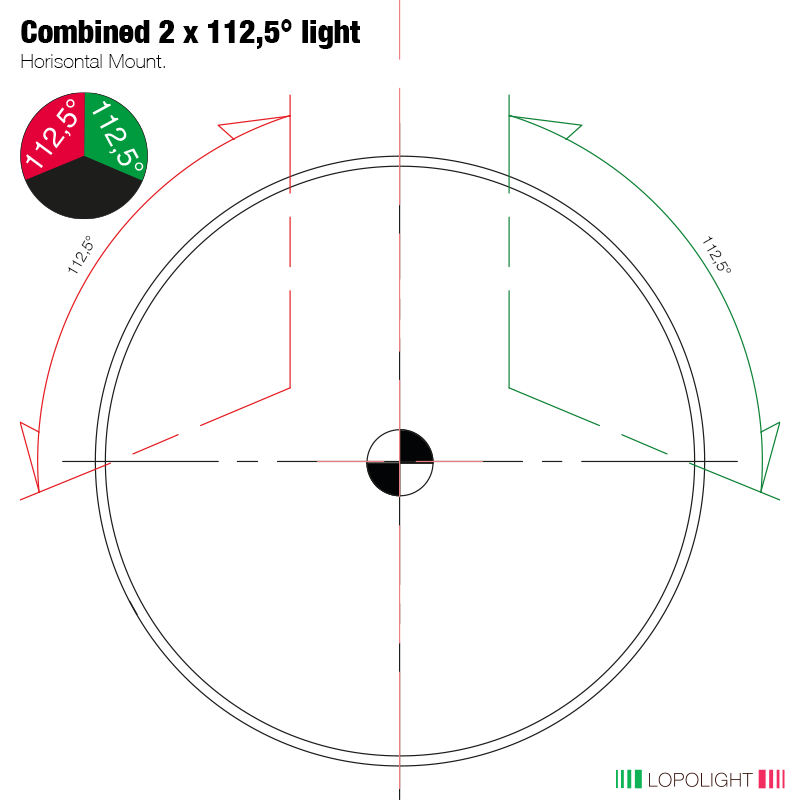

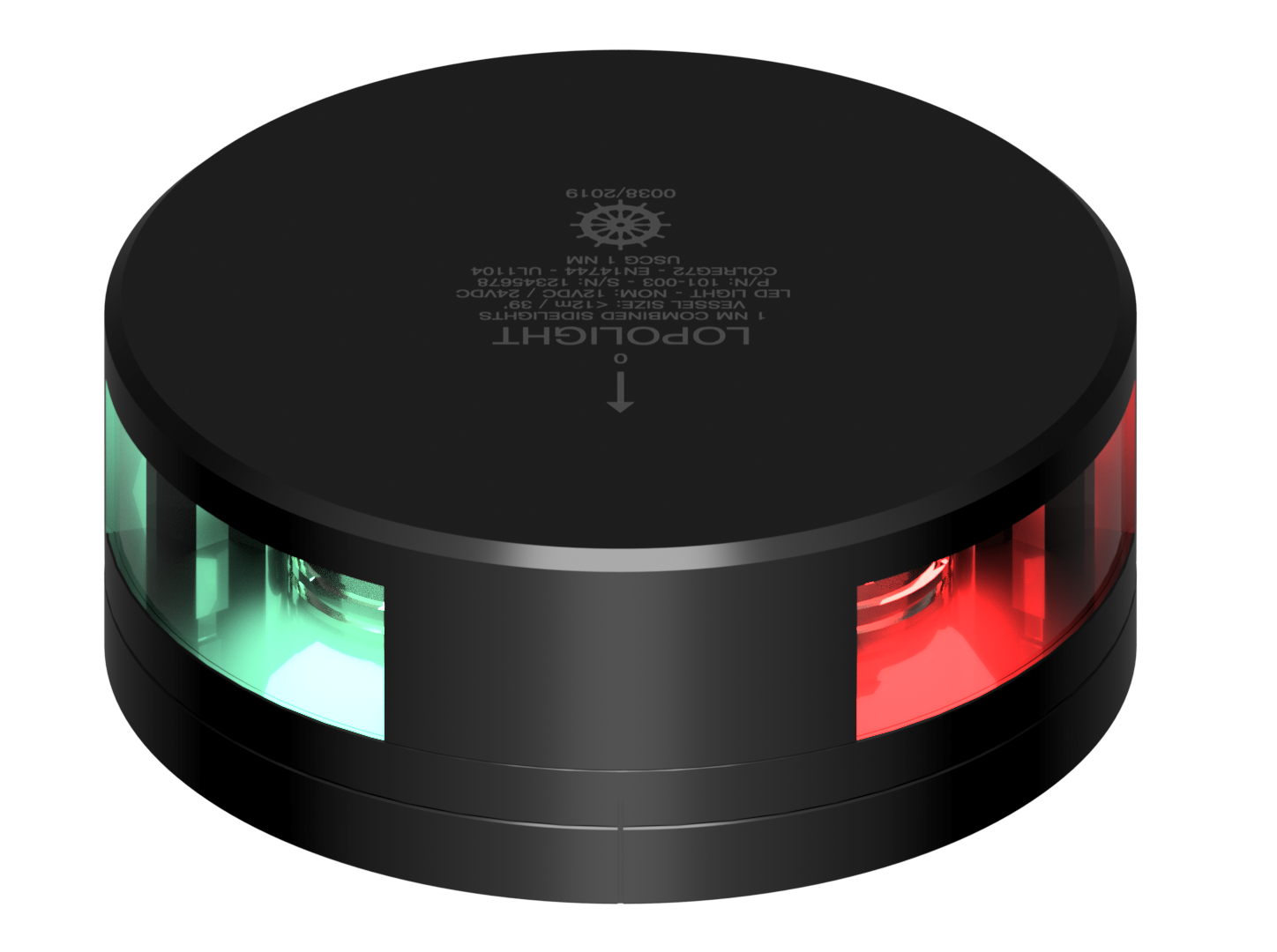

2nm 2x112,5° Red/Green Side, black w/FB, Ice-class

P/N: 201-003-FB-B-I 6M
2nm Comb Sidelights, black w/FB base ice-class
With ice-class defroster
Horizontally mounted with 6 meter cable
FB (flat base) POM mounting system

Number
201-003-FB-B-I 6M
Light Color
Red,Green
Dimensions metric
Ø92,5mm x 36mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 1.4"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-60°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438046955
IP rating
IP68
Power draw (W)
2,2
UPC Code
879343047085
Connection
6m cable
Current consumption (mA @ 12VDC)
163
Special Attributes
Ice-class Defroster included
Current consumption (mA @ 24VDC)
90
Vessel size
12-20M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.55 Kg
Weight (Oz)
19.23 Oz
