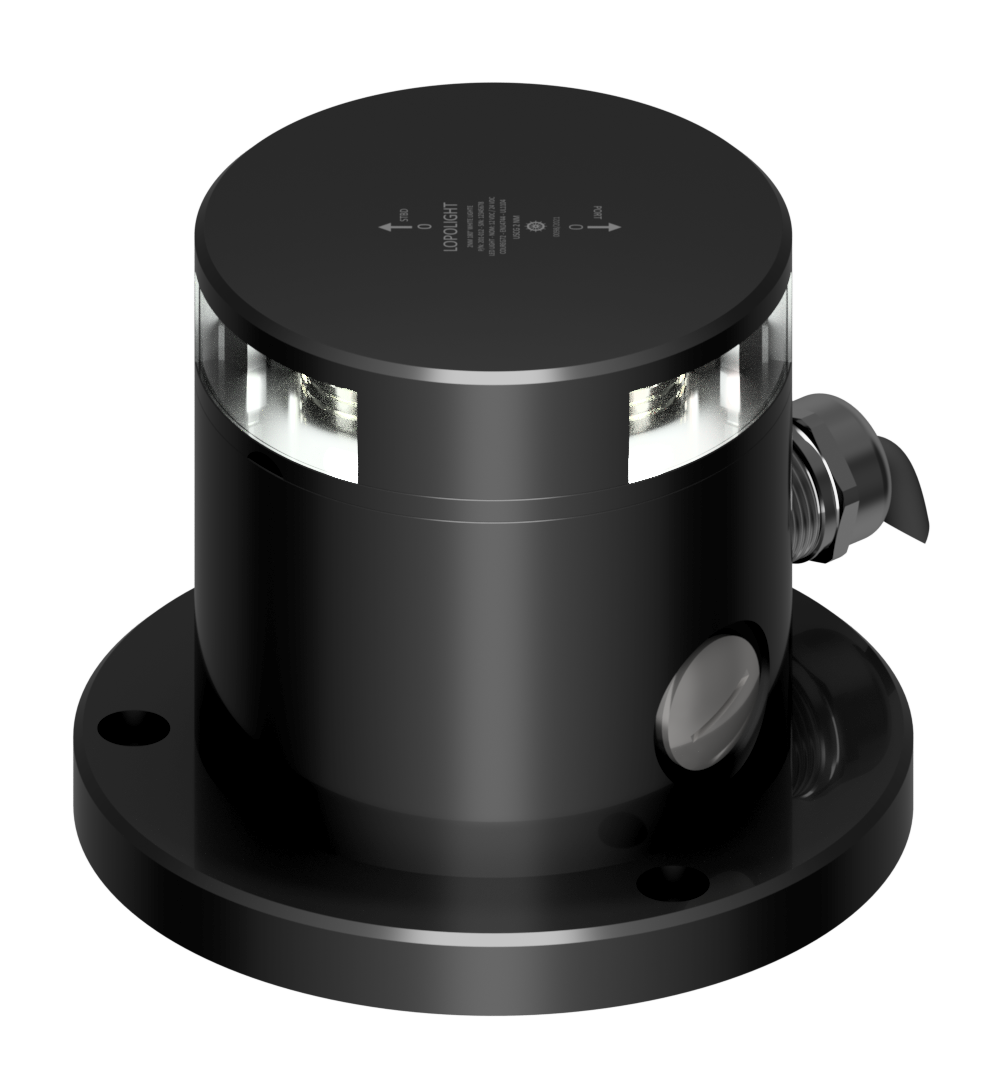

2nm 180° White, hor. mnt, dimmable, black
P/N: 200-012G2-B-RPM-180
2nm 180° White, hor. mnt, dimmable, black
Dimmable / monitored / controllable 2-lead connection for power and control 24VDC
Number
200-012G2-B-RPM-180
Light Color
White
Dimensions metric
Ø92,5mm x 74,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3,6" x 2,9"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438044418
IP rating
IP68
Power draw (W)
2,6
UPC Code
879343044541
Connection
Plug connector
Current consumption (mA @ 12VDC)
22
Special Attributes
Dimmable (NAVY/SAR only)
Current consumption (mA @ 24VDC)
100
Vessel size
20-50M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
