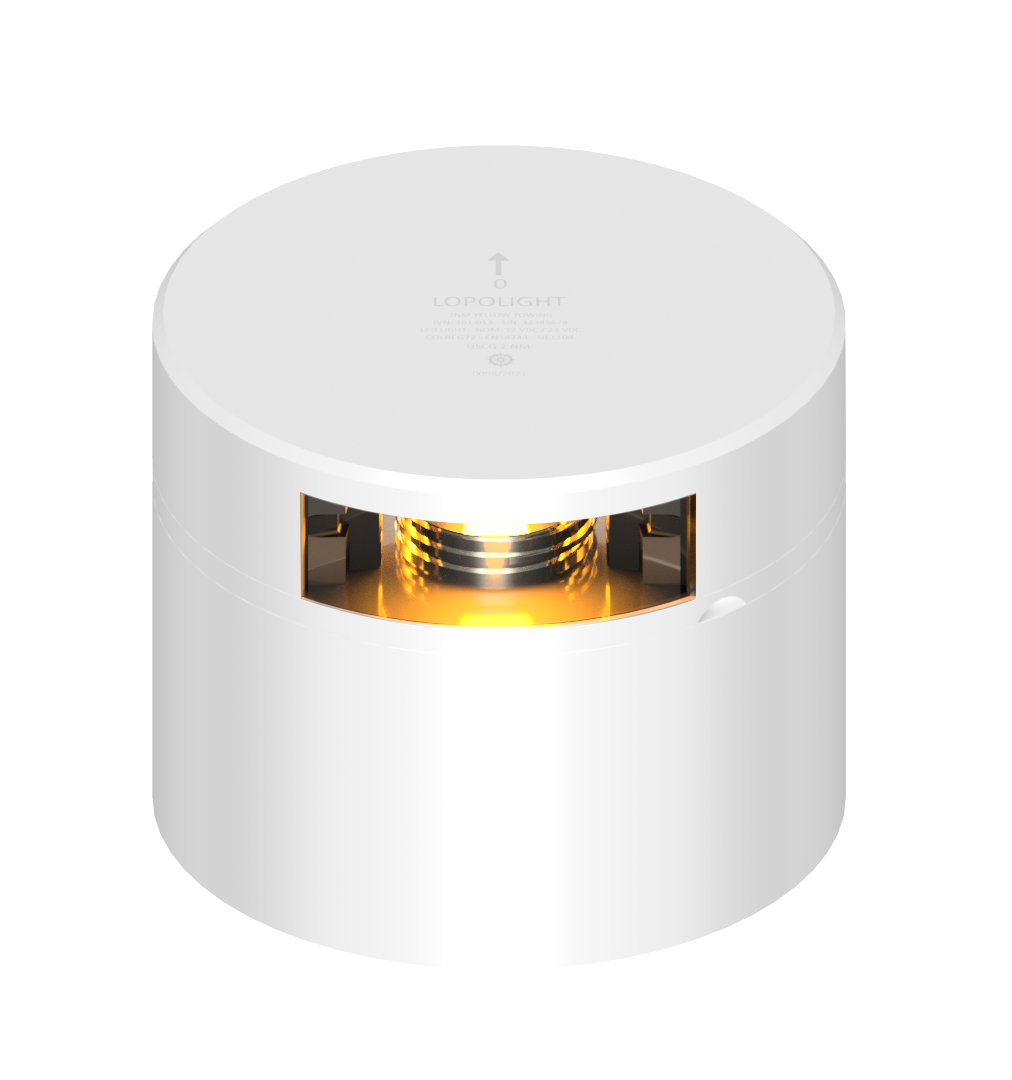

2nm 135° Yellow, Towing, white ceramic coated
P/N: 201-013-WH-CD
2nm 135° Yellow, Towing, white ceramic coated
Aluminium mount base, white Cable down M16 glands Included standard: Black PE baseplate
Number
201-013-WH-CD
Light Color
Yellow
Dimensions metric
Ø92,5mm x 74,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>5.4cd
Dimensions imperial
Ø3.6" x 2.9"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438048768
IP rating
IP68
Power draw (W)
1,7
UPC Code
879343048891
Connection
Plug connector
Current consumption (mA @ 12VDC)
124
Current consumption (mA @ 24VDC)
71
Vessel size
Under 12M,12-20M,20-50M
Weight (Kg)
0 Kg
Weight (Oz)
0.00 Oz
