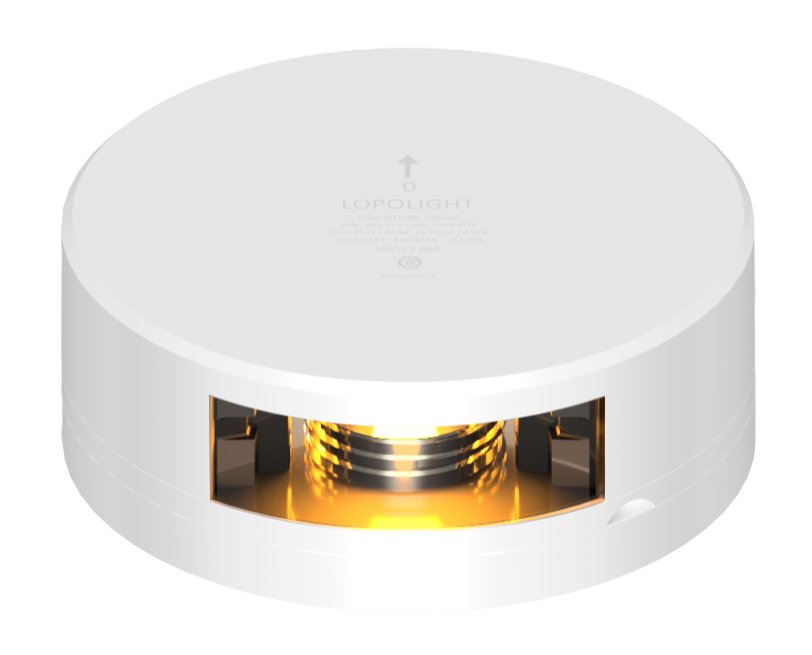

2nm 135° Yellow, Towing, white
P/N: 201-013-WH-UL
2nm 135° Yellow, Towing, white
White Ceramic Coated IP68 Aluminium ultra low base 2,5 meter cable
Number
201-013-WH-UL
Dimensions metric
Ø92,5mm x 46mm
Certification
This Navigation Light is Wheelmarked - based on a certification by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Dimensions imperial
Ø3.6" x 1.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Ceramic Coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438049031
IP rating
IP68
Power draw (W)
1,7
UPC Code
879343049164
Connection
2.5m cable
Current consumption (mA @ 12VDC)
85
Current consumption (mA @ 24VDC)
50
Weight (Kg)
0.5 Kg
Weight (Oz)
17.64 Oz
