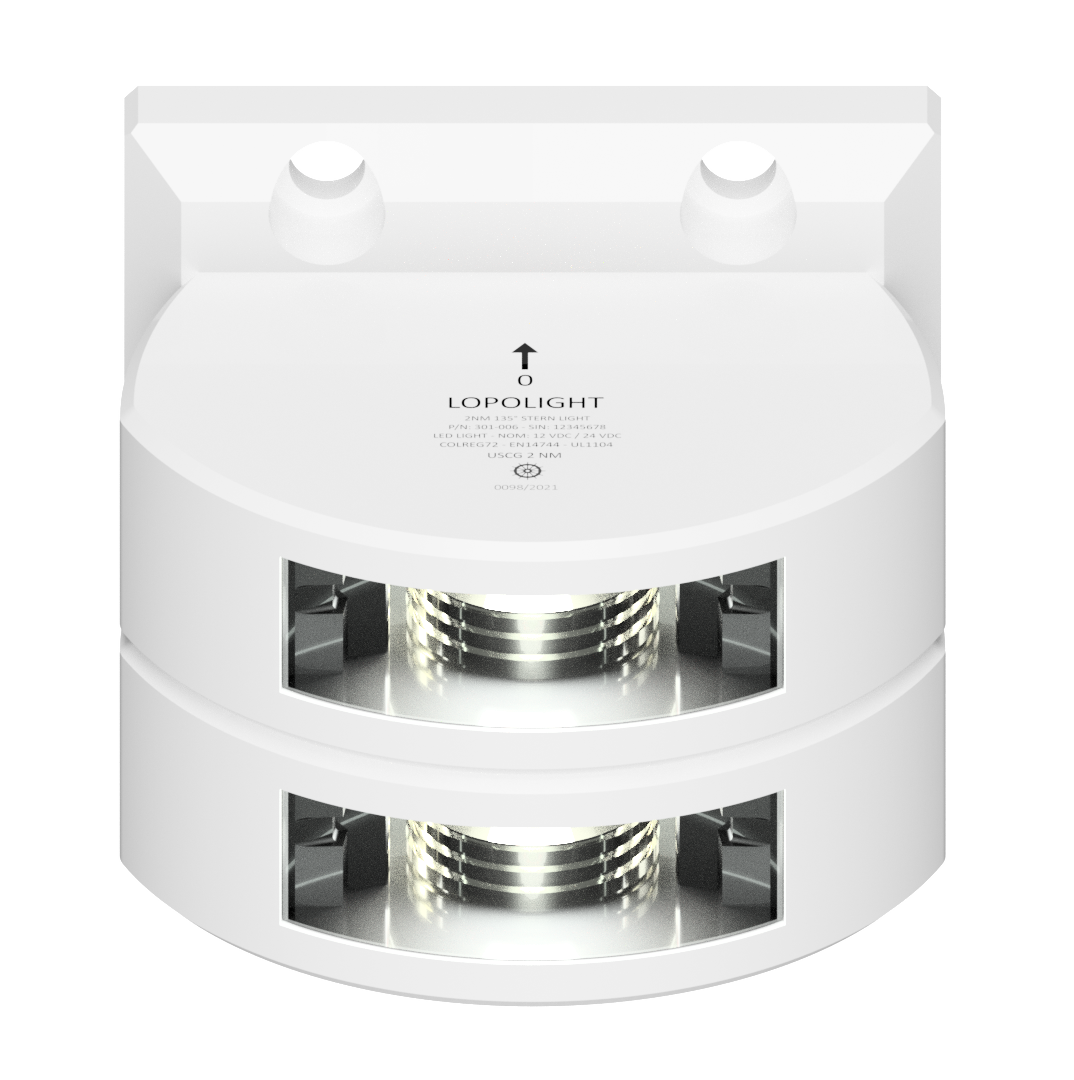

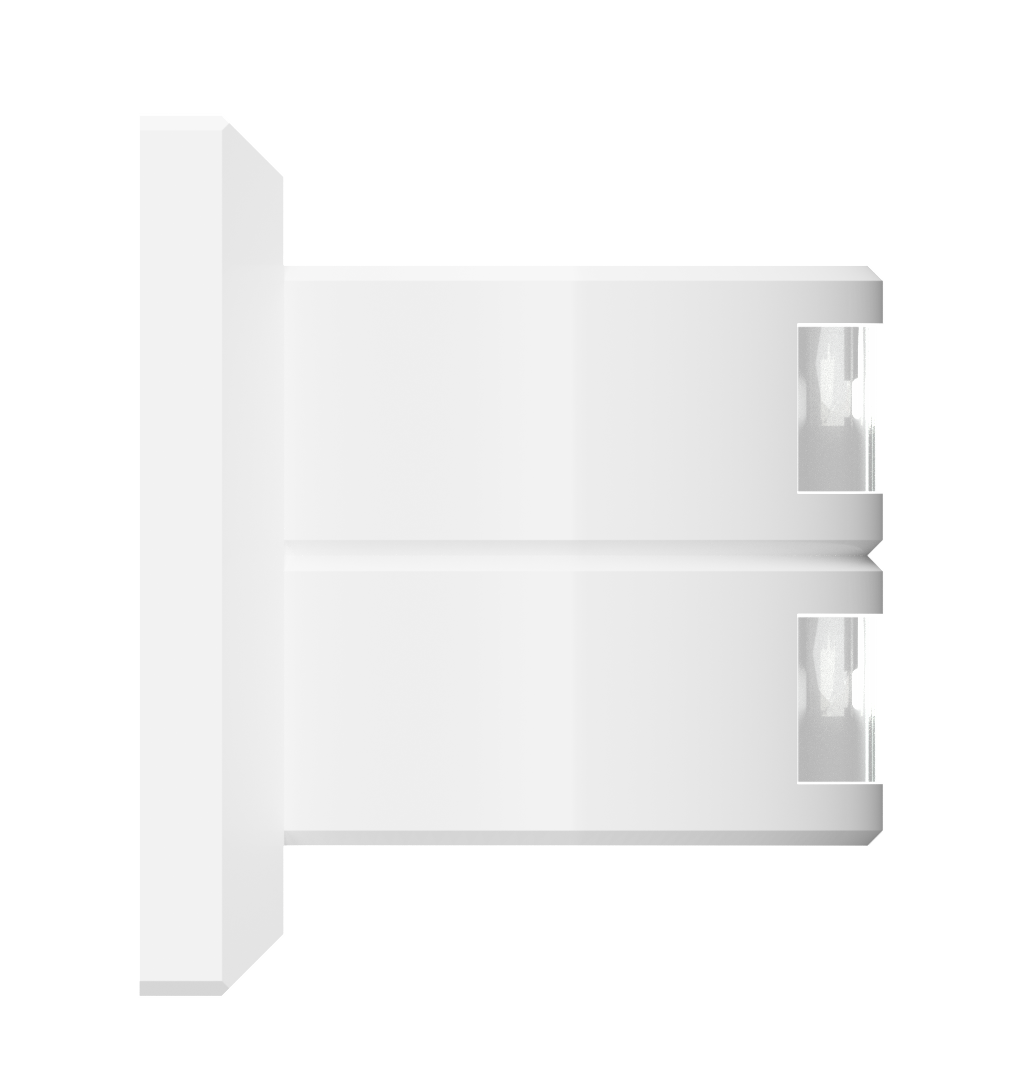

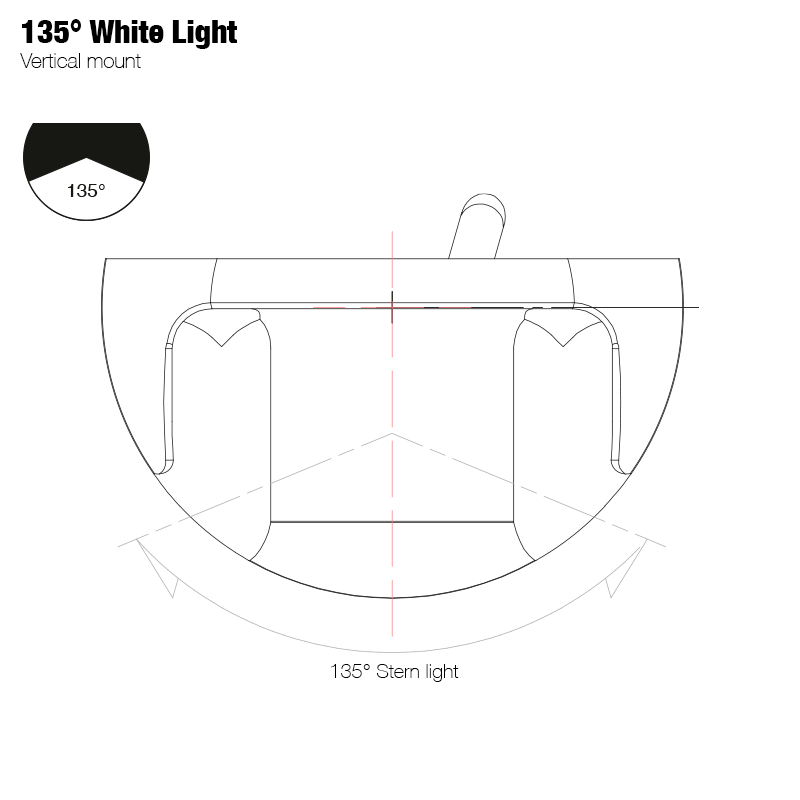

2nm 135° White, Dbl Stern, white ceramic coated
P/N: 301-006ST-WH
2nm Dbl Stern, white ceramic coated
White ceramic finish Vertically mounted with 2,5m cables
Number
301-006ST-WH
Light Color
White
Dimensions metric
Ø92,5mm x 96,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com
Intensity
>5.4cd
Dimensions imperial
Ø3.6 x 3.8
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Included In Package
1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-25°C to 55°C
Mounting
Vertical
Operating Voltage
10-32VDC
EAN
5704438041325
IP rating
IP68
UPC Code
879343041458
Connection
2.5m cable
Current consumption (mA @ 12VDC)
110
Current consumption (mA @ 24VDC)
50
Vessel size
12-20M,20-50M
Weight (Kg)
1 Kg
Weight (Oz)
35.27 Oz
