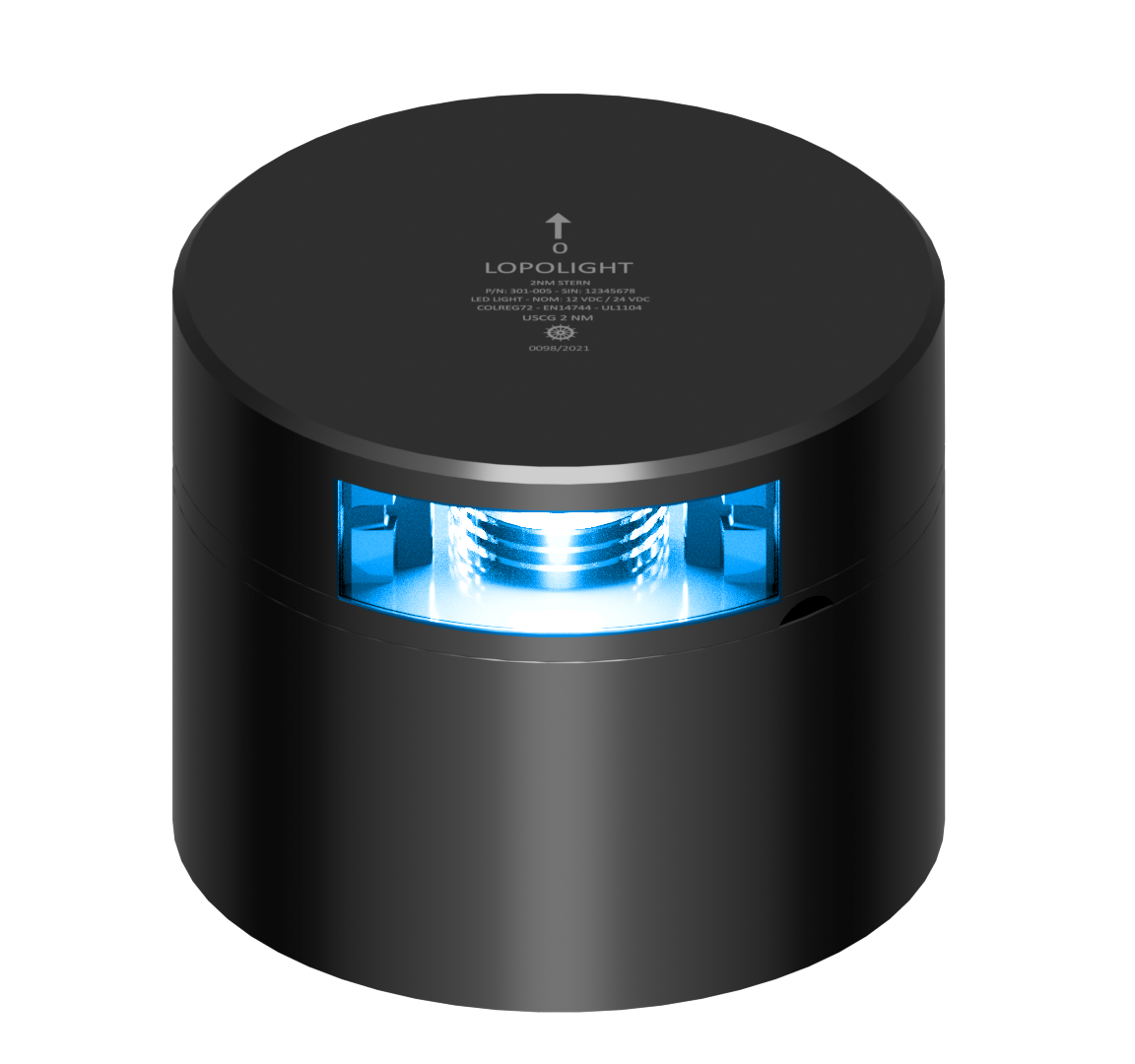

135° Blue light, black anodized - iceclass
P/N: 301-005-B-BLUE-I
135° Blue light, black anodized - iceclass
Built-in de-icing function Horizontally mounted on POM base (IP68) Cable direction side Quality cable gland 7-13mm (1/4" to 1/2" cable diameter
Number
301-005-B-BLUE-I
Light Color
Blue
Dimensions metric
Ø92,5mm x 46mm
Certification
Compliant to relevant sections of:
- IEC 60945
- MIL-STD-46
Dimensions imperial
Ø3.6" x 1.8"
Approved to
IEC 60945
Visibility
2nm
Included In Package
1 Navigation light,precabled with 2.5 meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide
Operating temperature
-60°C to 55°C
Mounting
Vertical
Materials
Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438046771
IP rating
IP68
Power draw (W)
1,3
UPC Code
879343046903
Connection
Plug connector
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Vessel size
Under 12M,12-20M,20-50M
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
0.99 Kg
Weight (Oz)
34.92 Oz
