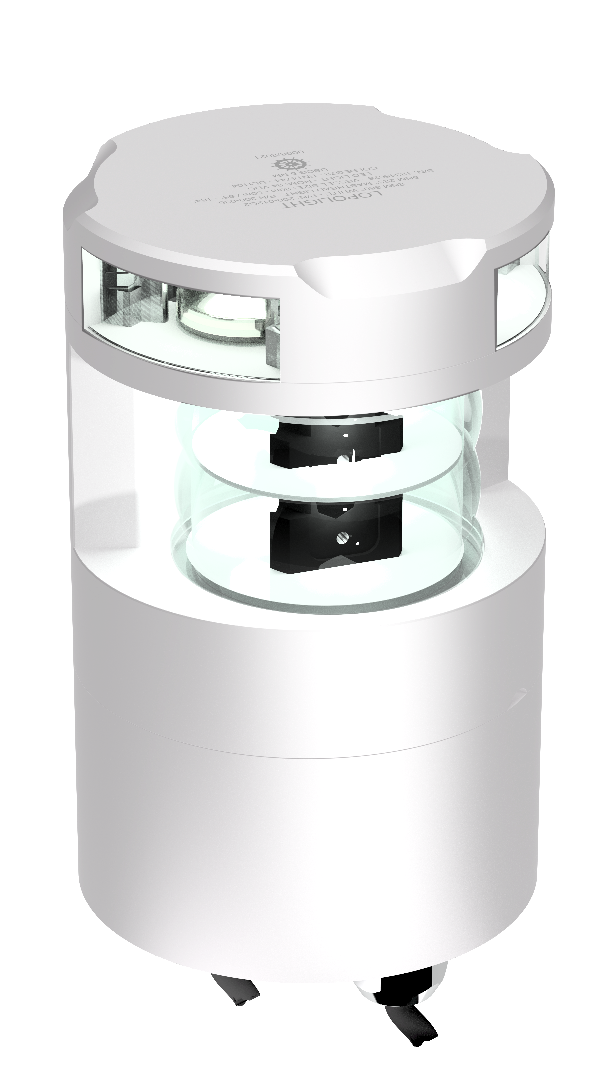

6nm 225° White, dbl masthead+3nm 360° White
P/N: 300-138+112-WH-CD
6nm 225° White, dbl masthead+3nm 360° White
White Ceramic Coated IP68 Aluminium base Cable down M16 glands
Number
300-138+112-WH-CD
Light Color
White
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
6nm
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Operating Voltage
10-32VDC
EAN
5704438049093
IP rating
IP68
UPC Code
879343049225
Connection
Plug connector
Current consumption (mA @ 12VDC)
0
Current consumption (mA @ 24VDC)
0
Vessel size
12-20M,20-50M,Over 50M
Weight (Kg)
1.45 Kg
Weight (Oz)
51.14 Oz
