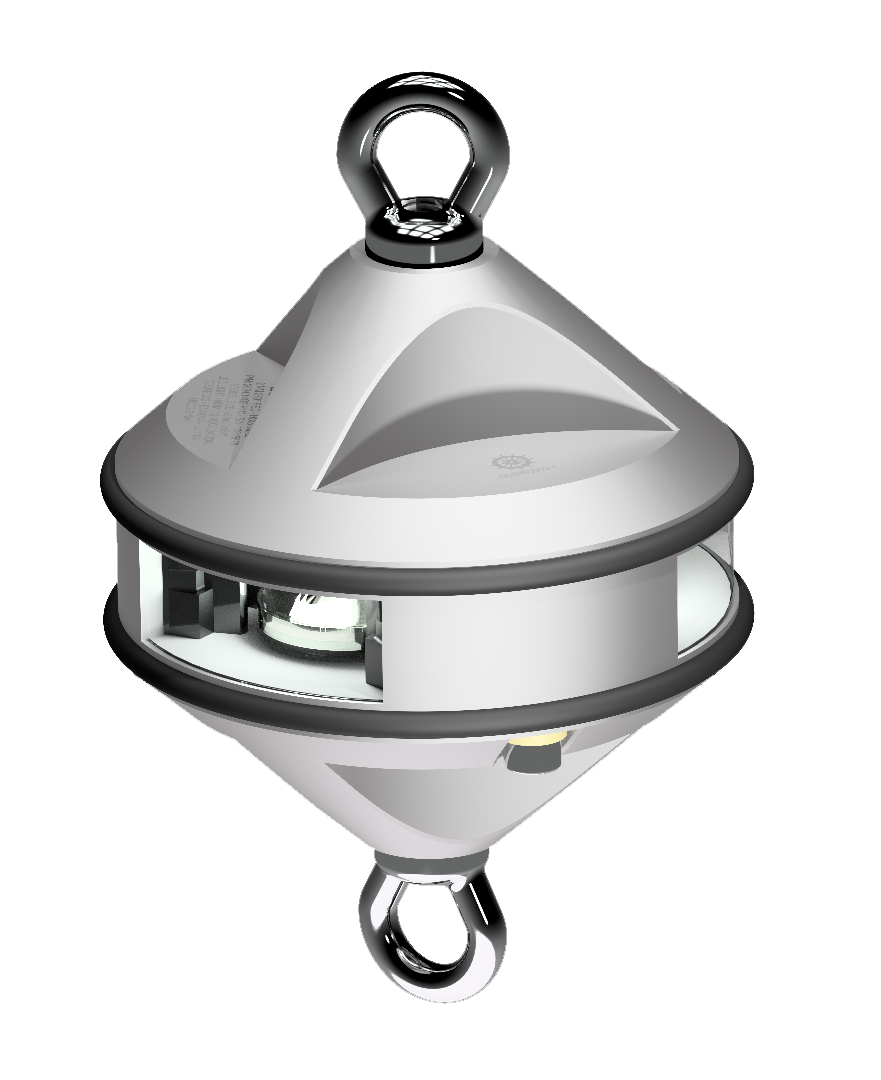

2nm 360° White, hoist, silver anodized
P/N: 200-012G2-H1C
2nm 360° White, hoist, silver anodized
1 connector
Number
200-012G2-H1C
Light Color
White

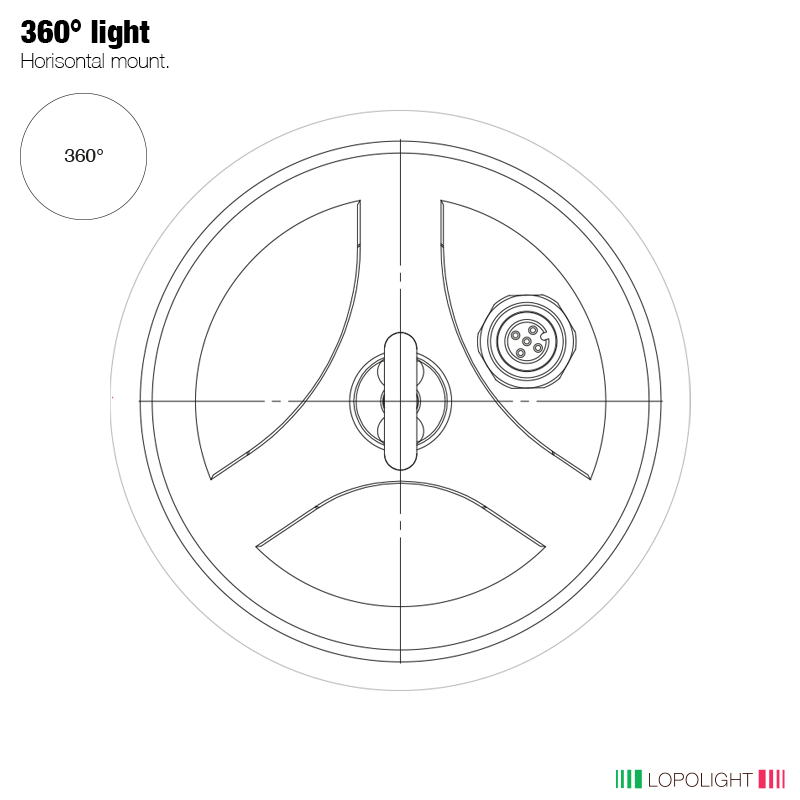

Dimensions metric
See drawing
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>5.4cd
Dimensions imperial
See drawing
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
2nm
Operating temperature
-25°C to 55°C
Materials
Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
10-32VDC
EAN
5704438020320
IP rating
IP68
UPC Code
879343020453
Connection
M12 connector
Current consumption (mA @ 12VDC)
167
Current consumption (mA @ 24VDC)
110
Vessel size
Under 12M,12-20M,20-50M
Weight (Kg)
0.75 Kg
Weight (Oz)
26.45 Oz
