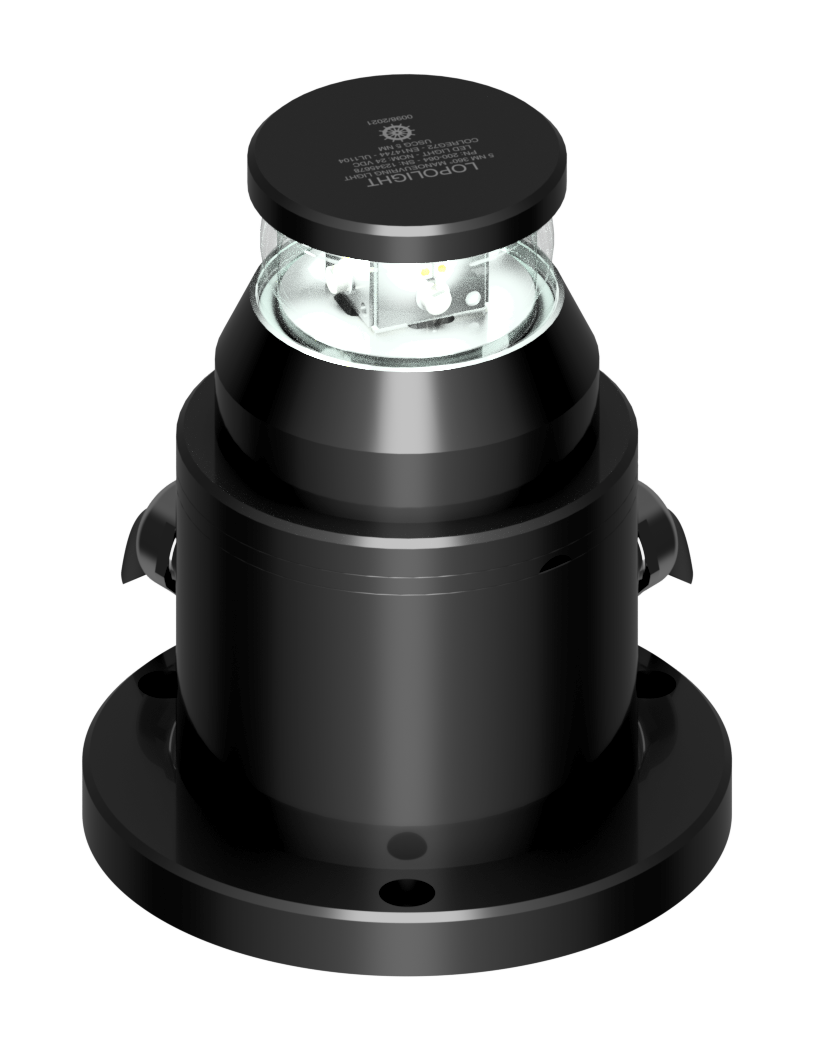

5nm dbl 360° white maneouv, black anodized.
P/N: 200-064ST-PRO
5nm dbl 360° white maneouv, black anodized.
Horizontally mounted on 400-037 POM base (IP68) Cable direction side incl. HDPE base plate Quality cable glands 7-13mm (9/32"- 1/2") cable diameter
Number
200-064ST-PRO
Light Color
White
Dimensions metric
Ø92,5mm x 124,5mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Intensity
>52cd
Dimensions imperial
Ø3.6" x 4.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility
5nm
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Materials
Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage
20-32VDC
EAN
5704438007734
IP rating
IP68
Power draw (W)
6
UPC Code
879343007737
Connection
Plug connector
Current consumption (mA @ 12VDC)
500
Stock status
Made to order
Current consumption (mA @ 24VDC)
250
Vessel size
All Sizes
Min. feed wire gauge
0.5mm2 AWG22
Weight (Kg)
1.4 Kg
Weight (Oz)
49.38 Oz
